Atlas Sound FA136T87 | 6 Inch Coaxial In-Ceiling Speaker with 8-Watt 70V Transformer

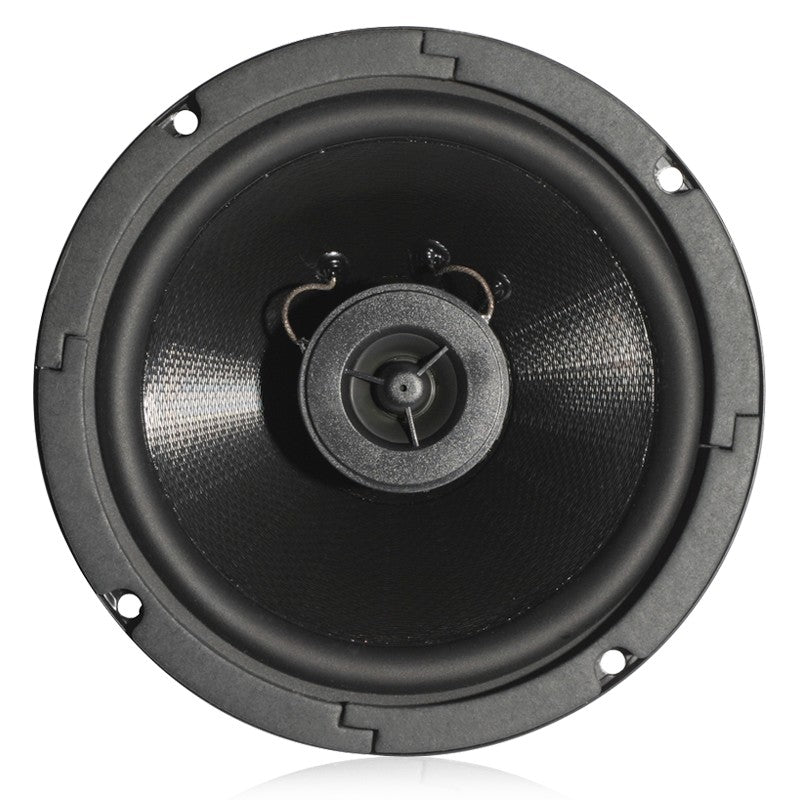

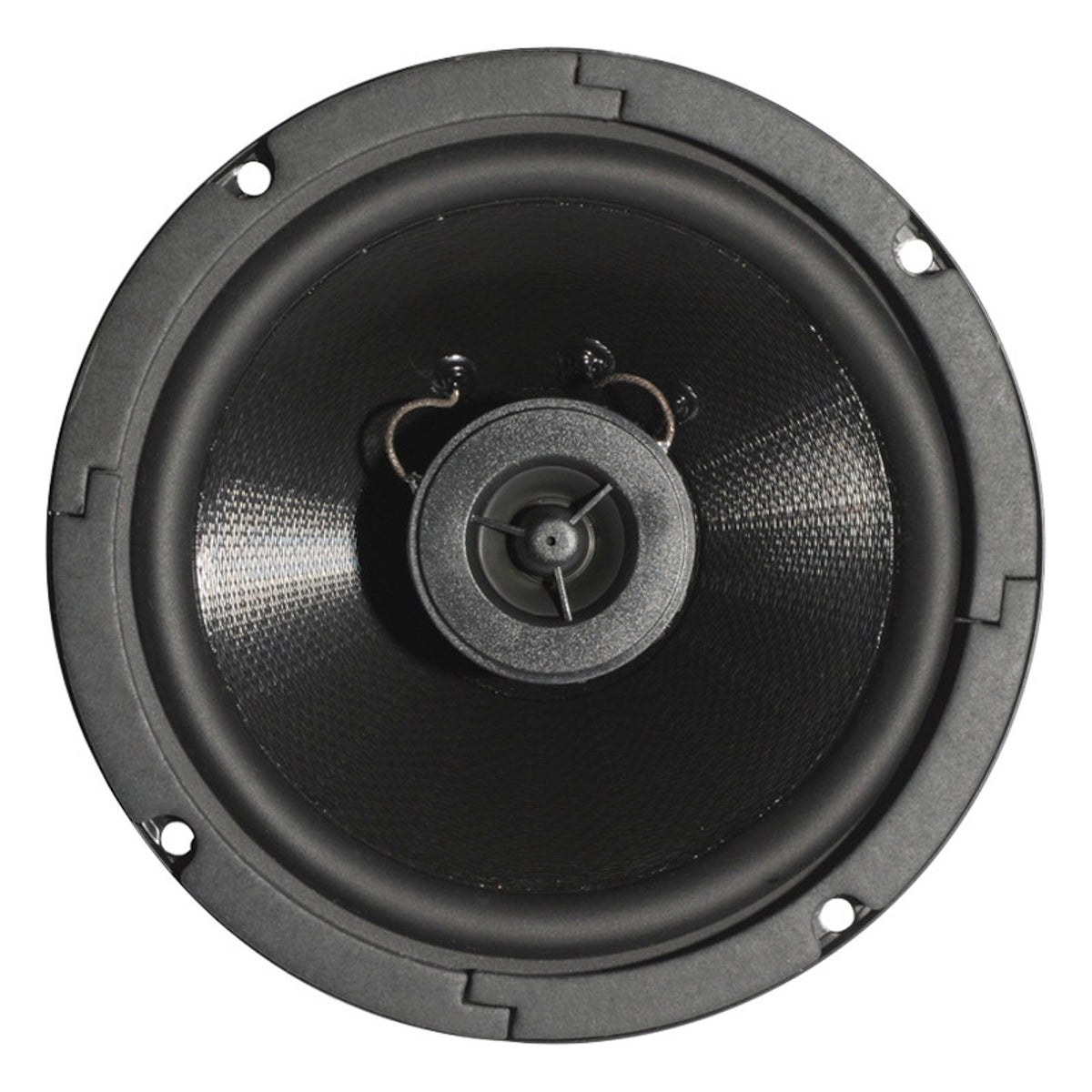

Model FA136T87 (U.S. Patent #5206464) is a high-fidelity, coaxial, 6" loudspeaker that delivers 50-watts with full frequency response and wide dispersion.

UL listed assemblies are manufactured with high quality materials including reinforced, polypropylene woofer and synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance.

Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferrofluid-cooled voice coil for smooth response and excellent power handling capability.

For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-6 Series high performance enclosures (.17ft3) with acoustic batting as well as the economy FA95-6 Series (.14ft3) backbox enclosures. The enclosure front-loads the loudspeaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps. Loudspeakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-6 instead of an enclosure.

Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures. For limited depth installations when no enclosure is required mounting ring model FAPR-6 may be utilized. New constuction ring model FA-TR6 is also available to serve as a pattern cut-out and location marker for drywall installers in new construction applications.
