Atlas Sound FA42T-6MB | 4 Inch In-Ceiling Coaxial Speaker Motorboard Assembly with 16-Watt 70.7V/100V Transformer

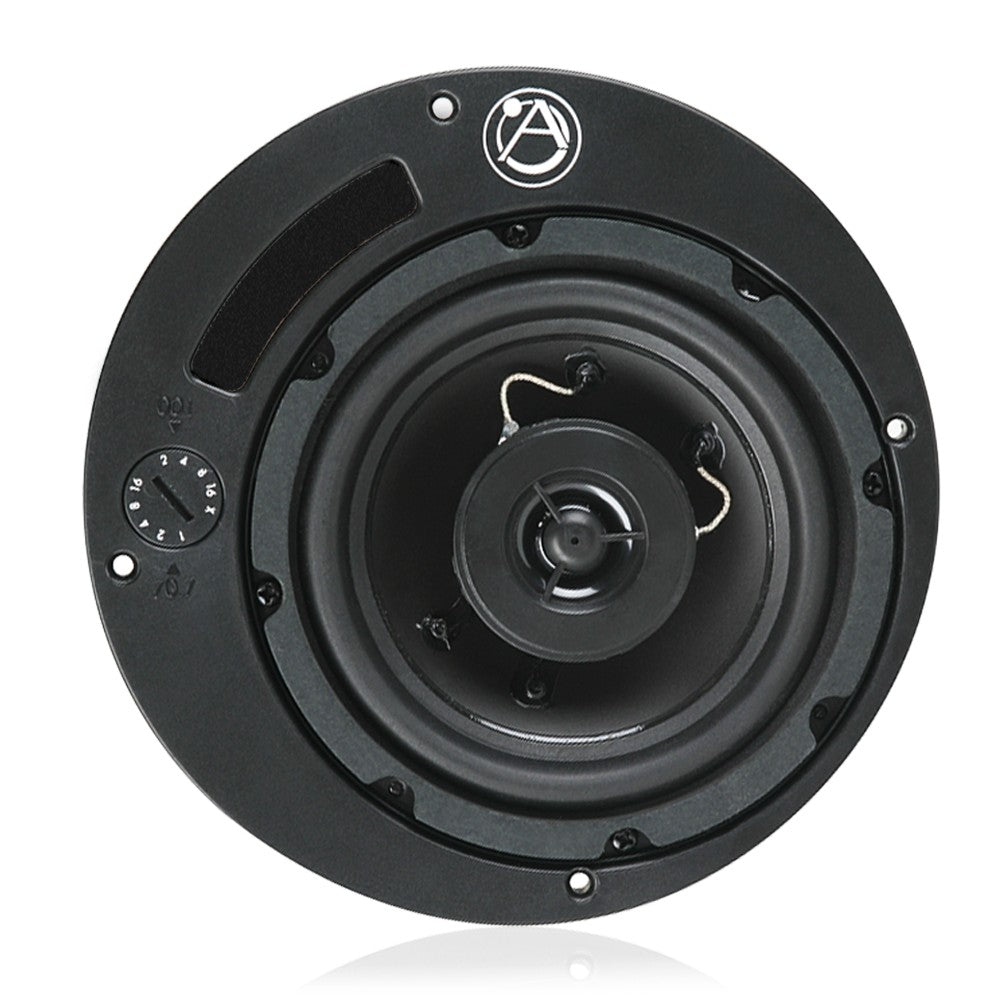

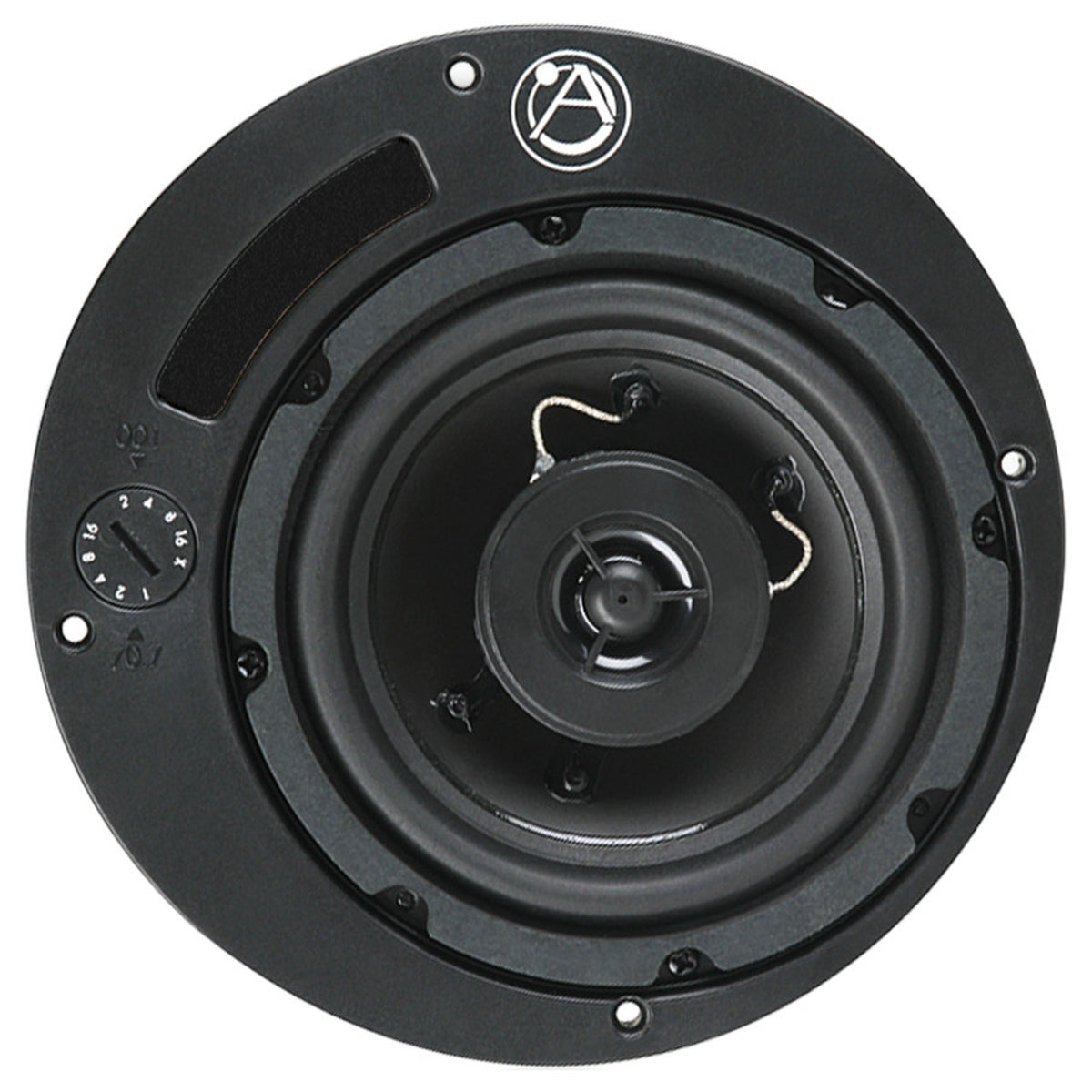

Model FA42T-6MB is the entire 4" loudspeaker/ transformer/ selector switch/ front plate assembly found in the FAP42T assembly. The footprint of the FA42T-6MB is identical to a standard FA series 6" loudspeaker component. This footprint allows the motor board to fit into all original Strategy Series 6" enclosures in the exact same manner as a regular 6" FA loudspeaker (FA136Txx).
Atlas Sound - FA42T-6MB - Features
- 4" Speaker Installs into 6" Strategy Enclosure
- Designed for Division of Labor Installations When Enclosures Need to be Installed Before Speakers are Installed
- Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
- Front Mounted Tap Selector Switch for Easy System Tuning Adjustments
- Motorboard Assembly has Same Footprint and Bolt-Hole Pattern as 6" Speaker
- Tuned Port Maximizes Low Frequency Response from FA97-6 & FA95-6 Enclosure
- UL1480 for General Signaling Listed file UEAY.S1824
Specifications
Specifications
Atlas Sound - FA42T-6MB - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- In-Ceiling
- Strategy II Series
Atlas Sound - FA42T-6MB - Related Products
- FAP42-TR - New Construction Ring for FAP42T Speaker
Atlas Sound - FA42T-6MB - Specifications
| Speaker Type | Coaxial |
|---|---|
| Sensitivity | 88dB Average |
| Power Taps | 1, 2, 4, 8 & 16 Watts |
| Dispersion | 130° |
| Depth | 5 1/2" (13.97 cm) |
| Diameter | 7" (17.78 cm) |
| Shipping Weight | 4.00 lbs (1.81 kgs) |
| Certified to Safety Listing | UL 1480 |
| UNSPSC Code | 52161600 |
