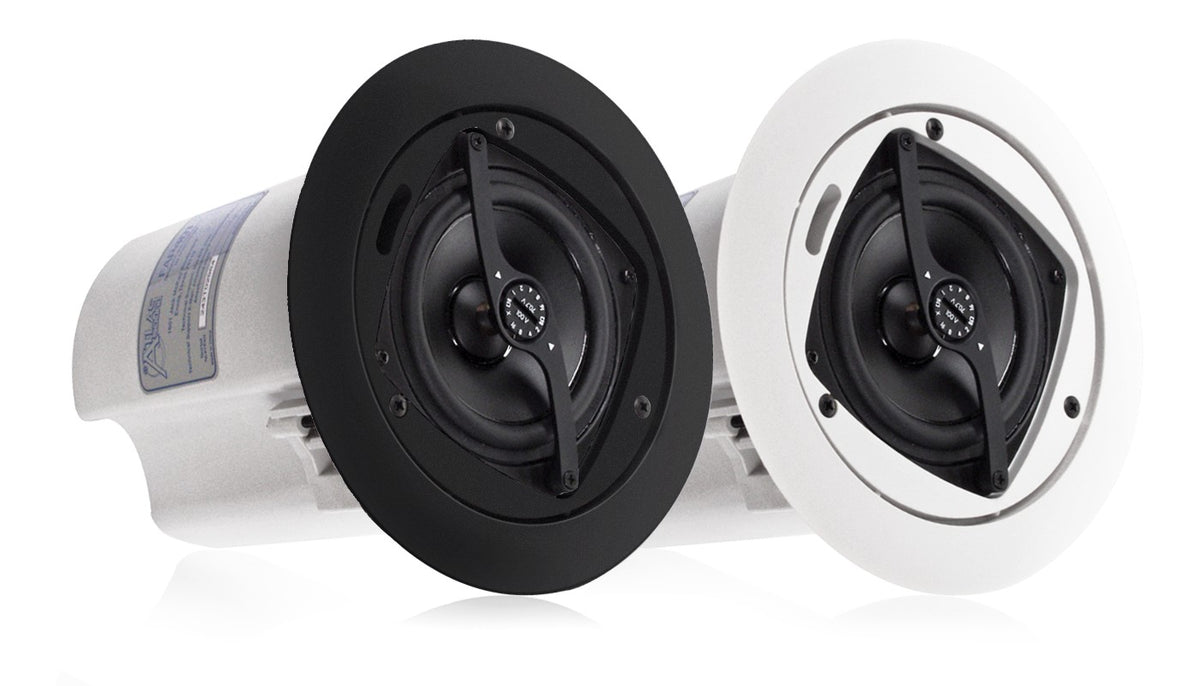

Atlas Sound FAP40T-B | 4 Inch In Ceiling Speaker with 16-Watt 70/100V Transformer and Ported Enclosure
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Designed to provide high performance in a very compact footprint, the FAP40T appeals to both system designers and architects. FAP40T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications. A unique (patent pending) tap selector switch design allows for easy system tuning. A full selection of taps up to 16 watts as well as an 8 ohm transformer bypass setting is included for maximum system versatility. This switch "knob" also functions as a diffuser cone, providing smooth, even dispersion of the high frequency content from the center of the 4" polypropylene driver. In fact, the high frequency response of the FAP40T is so natural that many would assume that the driver in the FAP40T was a coaxial design instead of a single cone driver. Low frequency response is enhanced by the tuned and ported enclosure design. The enclosure (UL1480 pending) is constructed of high impact injection molded plastic and includes a press fit grill design that blends quite well with contemporary architecture. A two pole terminal strip housed below a metal removable cover on the back of the FAP40T enclosure allows for easy system wiring as well as "daisy chain" wiring to other FAP40T's or even FASUB70 subwoofers (a great combination!).
Atlas Sound - FAP40T-B - Features
- 16 Watt Internal Transformer
- 8 ohm Transformer Bypass Setting
- Input Via 2 Pole Terminal Strip
- Lightweight Construction Makes Use of Additional Support in Drywall Ceilings Unnecessary
- Low Profile Plastic Enclosure
- Press-Fit Grille Blends Perfectly into Contemporary Architecture
- Tile Bridge Include
- Tuned & Ported Design for Extended Bass Response
Specifications
Specifications
Atlas Sound - FAP40T-B - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- In-Ceiling
- Strategy II Series
Atlas Sound - FAP40T-B - Specifications
| Speaker Type | Single Cone |
|---|---|
| Power Taps | 1, 2, 4, 8, 16 Watts & 8? |
| Sensitivity | 87dB Average |
| Frequency Response | 100Hz - 12kHz |
| Dispersion | 130° |
| Depth | 7 1/8" (18.0975 cm) |
| Diameter | 7 3/8" (18.7325 cm) |
| Shipping Weight | 8.50 lbs (3.86 kgs) |
| Certified to Safety Listing | UL 1480 |
| UNSPSC Code | 52161600 |
