Atlas Sound FC104T | 4 Inch In-Ceiling Speaker with 8-Watt 70V Tran...
Description
Description

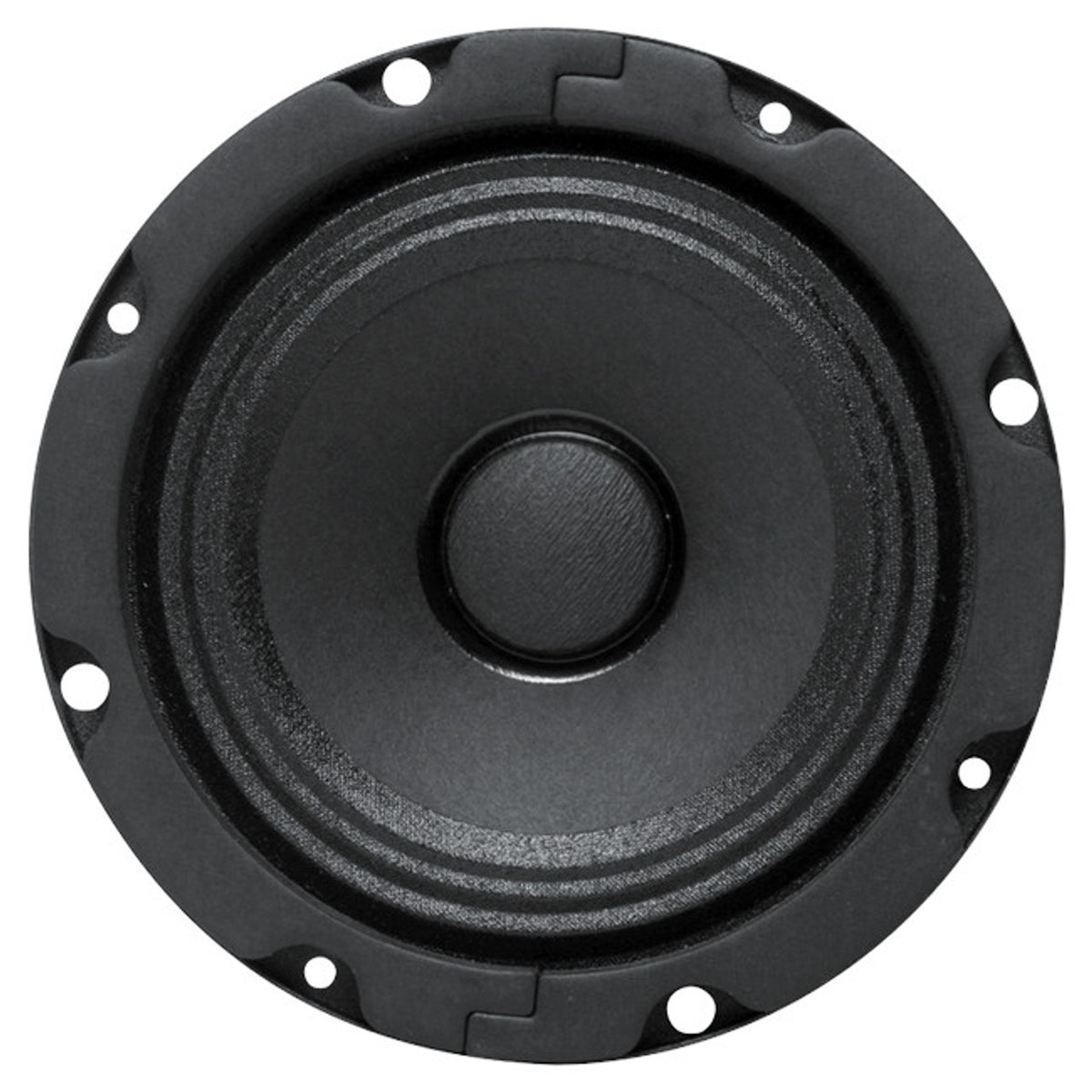

This compact, full-range, 4" (127mm) loudspeaker is equipped with a damped, high-compliance cone which provides excellent low frequency reproduction and smooth extended response.
Model FC104T also offers a wide dispersion angle which reduces the number of loudspeakers necessary to achieve total coverage in low-level distribution systems.
This new model features an all new transformer that provides tap setting from .5w to 8w providing easy system balancing.
Atlas Sound - FC104T - Features
- Efficient Wide-Range Frequency Response
- Ideal for Public Address and Background Music Installations
- Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
- Mounts a Large Selection of Atlas Sound 4" Grilles
- Offers Proven Performance with Wide-Angle Sound Dispersion
- Versatile 8W, 70.7 V Transformer with .5 to 8W Taps
- UL Certified, Safety Listed to UL1480
- This compact, Full-Range, 4 Inch (127 MM) Loudspeaker is Equipped with a Damped, High-Compliance Cone Which Provides Excellent Low Frequency Reproduction and Smooth Extended Response
- Model FC104T also Offers a Wide Dispersion Angle Which Reduces the Nu mber of Loudspeakers Necessary to Achieve Total Coverage in Low-Level Distribution Systems
- This New Model Features an All New Transformer that Provides Tap Setting from 0.5 to 8 Watt Providing Easy System Balancing
- Efficient Wide-Range Frequency Response
- Ideal for Public Address and Background Music Installations
- Industry Standard, 10-Watt, 4 Inch High Compliance Loudspeaker
- Mounts a Large Selection of Atlas Sound 4 Inch Grilles
- Offers Proven Performance with Wide-Angle Sound Dispersion
- VersatileWatt, 70.7 Volt Transformer with 0.5 to 8 Watt Taps
Specifications
Specifications
Atlas Sound - FC104T - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- Speaker Components
- Speaker Drivers
Atlas Sound - FC104T - Specifications
| Speaker Type | High Compliance |
|---|---|
| Sensitivity | 94dB (at 1W/1m) |
| Frequency Response | 150Hz - 17kHz |
| Power Taps | .5, 1, 2, 4 & 8W |
| Dispersion | 135º (-6dB, 2kHz Octave Band) |
| Depth | 4" (10.16 cm) |
| Shipping Weight | 22.00 lbs (9.98 kgs) |
| Safety Listed | 1480 |
| UNSPSC Code | 52161600 |
