Atlas Sound GA-15T | Re-Entrant Horn Speaker with 25V/70.7V-15W Tra...
Description
Description

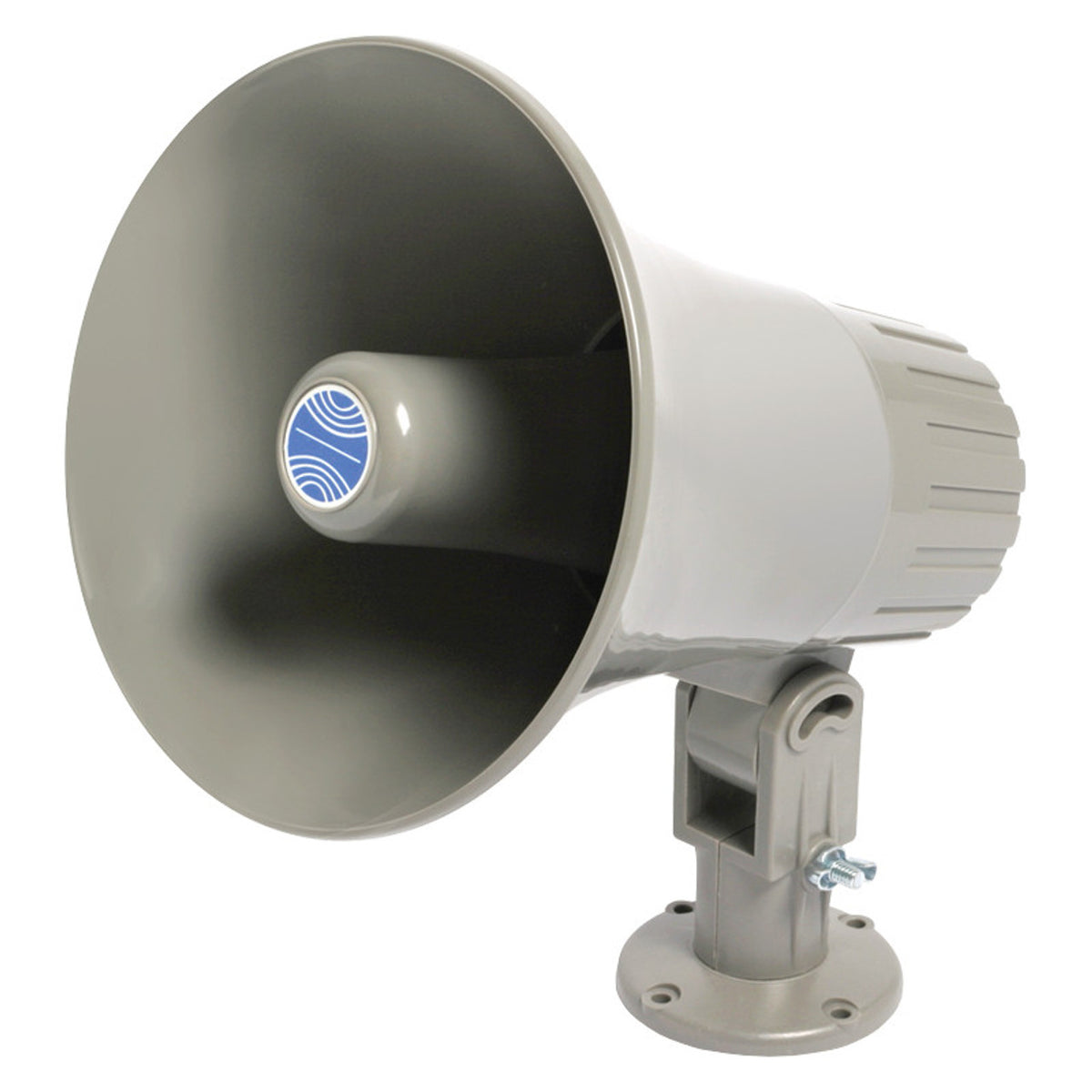

The GA-15T speaker is a utility horn perfectly suited for voice paging and music transmission. Double re-entrant horn construction optimizes speaker output to penetrate ambient sound levels. This 15-watt model incorporates a compression driver with ceramic magnet and includes a combination 25/70.7-volt line transformer with multi-position knob switch for selecting power taps. Unit is also equipped with wiring for an 8-ohm connection to facilitate installation when a transformer is not required.
GA-15T features a round, high-impact plastic horn and will withstand outdoor installation in high-humidity environments. Adjustable surface mounting bracket provides multiple (vertical & horizontal) positioning. Each assembly is supplied with 21-gauge 18" color coded wire leads for matching polarity and speaker connection.
Entire assembly is gray with silver colored hardware.
Atlas Sound - GA-15T - Features
- Dual Voltage, Knob-Adjustable Impedance Selection for 25/70.7V Line Connection
- Multi-Function, Re-Entrant Horn Loudspeakers Offer Efficient Sound Penetration and Dispersion for Paging, Music and Intercom Use
- Sturdy Construction for Long-Term Indoor and Outdoor Use
Specifications
Specifications
Atlas Sound - GA-15T - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Horns
- Paging Horns
- General Purpose Horns
Atlas Sound - GA-15T - Specifications
| Frequency Response | 500Hz - 3kHz |
|---|---|
| Sensitivity | 103dB |
| Power Taps | .5, 1, 2, 4, 8, 15W @ 70.7V |
| Dispersion | 80° |
| Depth | 9 3/8" (23.8125 cm) |
| Diameter | 7 1/2" (19.05 cm) |
| Shipping Weight | 3.63 lbs (1.64 kgs) |
| UNSPSC Code | 52161600 |
