Atlas Sound HPA-DAC2 | Two-Input Dante Accessory Card for HPA Ampli...
Description
Description

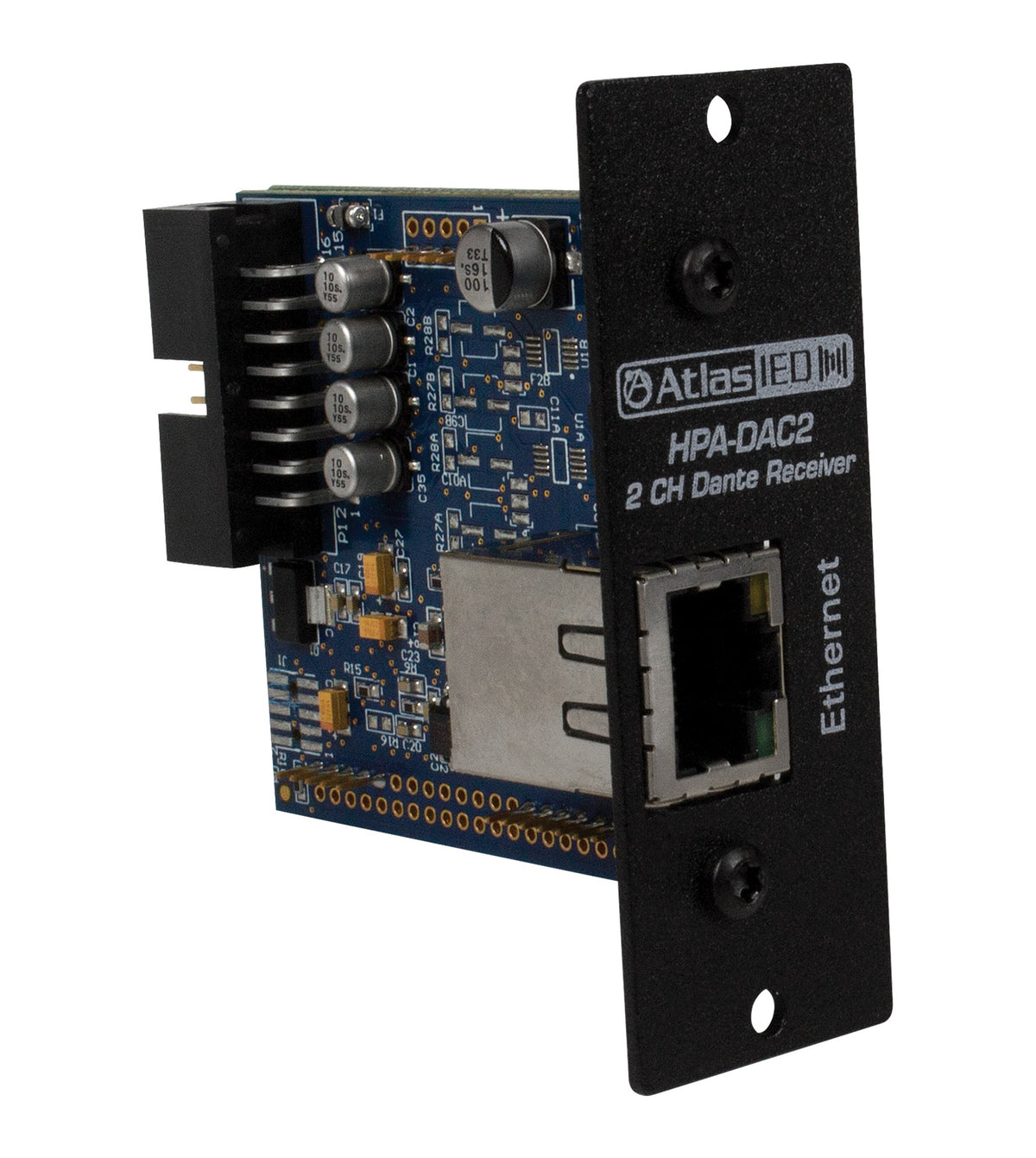

The HPA-DAC2 accessory card is designed to work in conjunction with HPA Series 2-channel amplifiers. The HPA-DAC2 is a 2-input Dante™ receiver that features digital audio transportation over standard IP networks. The HPA Series 2-channel amplifiers come standard with two balanced line inputs and an accessory card slot to add an additional 2-inputs, giving the amplifier a total of 4-inputs.
Analog Input 1 and Dante™ Input 1 are isolated from each other and are electronically summed together forming a mixed output. Both Input levels to the amplifier channel are controlled by the Ch-1 level control. Channel 2 inputs are configured the same as Channel 1.
Atlas Sound - HPA-DAC2 - Features
- Dante® Network Audio Enabled
Specifications
Specifications
Atlas Sound - HPA-DAC2 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Amplifiers
- Power Amplifiers
- Dual Channel Power Amplifiers
Atlas Sound - HPA-DAC2 - Related Products
- HPA1302 - Dual-Channel, 1300-Watt Commercial Amplifier
- HPA1302 - Dual-Channel, 600-Watt Commercial Amplifier
- HPA2602 - Dual-Channel, 3200-Watt Commercial Amplifier
- HPA4202 - Dual-Channel, 4800-Watt Commercial Amplifier
Atlas Sound - HPA-DAC2 - Specifications
| Connector Type | RJ-45 |
|---|---|
| Gain Controls | 0dBFS = 20dBu & 0dBFS = 10dBu PCB shunt selectable |
| Frequency Response | 20Hz - 20KHz +/- 1dB |
| THD | .06% @ 1KHz |
| Maximum Output Level | 7dBu |
| Height | 0.97" (2.46cm) |
| Width | 2.7" (6.8cm) |
| Depth | 2.5" (6.3cm) |
| Weight | 2.6oz (0.07kg) |
| UNSPSC Code | 52161600 |
