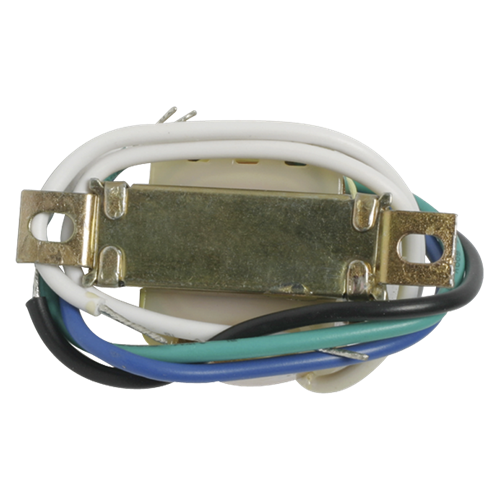

Atlas Sound HX33-4525 | Intercom Transformer (45 Ohm, 0.5, 1 Watt)
Regular price
$27.83
Unit price
Brand: Atlas Sound
|
SKU:
10230170
Regular price
$27.83
Unit price
Description
Description
Atlas Sound HX33-4525 | Intercom Transformer (45 Ohm, 0.5, 1 Watt)
HX-33-4525, specifically designed for use with intercom applications when connecting a 45 ohm speaker to a constant voltage system. The small size of these transformers makes them ideal for use in compact spaces. The insertion loss will not exceed 1.5dB and the frequency response is +2dB from 150Hz - 9kHz. The primary taps are .5 and 1 watt. Secondary impedance is 45 ohms.
Atlas Sound - HX33-4525 - Features
- 25V Line Matching Transformer
- 5 & 1 W Taps
- Intercom & General PA
Specifications
Specifications
Atlas Sound - HX33-4525 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Amplifiers
- Intercom Systems
- Accessories
Atlas Sound - HX33-4525 - Specifications
| Height | 1 3/16" (3.02 cm) |
|---|---|
| Width | 1 7/16" (3.65 cm) |
| Depth | 1/2" (1.19 cm) |
| Shipping Weight | 0.28 lbs (0.13 kgs) |
| UNSPSC Code | 52161600 |
Atlas Sound - HX33-4525 - Videos
| Welcome to AtlasIED | Click to View |
|---|---|
| AtlasIED - With Over 2,000 Products... We Have All the Essentials You Need | Click to View |
| AtlasIED's Official Youtube Channel | Click to View |
