Atlas Sound IED1112PSM | Plug-In Power Supply Module for Redundancy
Description
Description

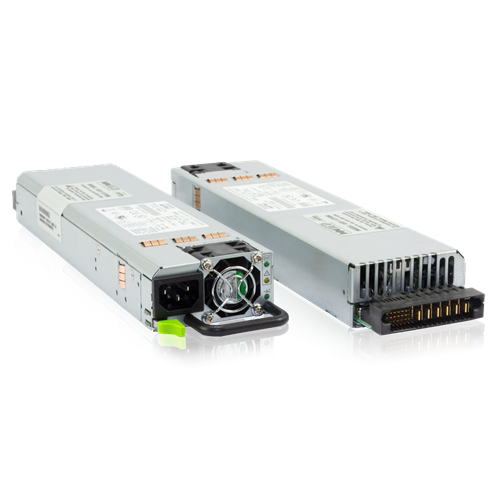

The 1112PSM is a plug-in power supply module used with the 1112PS rack mount power supply. Each module is capable of delivering up to 37 Amps of 12V DC power. Two 1112PSM modules can be used in a 1112PS for redundant operation. When used in this configuration, both supplies share the load placed on the unit. If either module fails, the load is transferred to the remaining good supply and a fault indication is displayed.
Each 1112PSM contains a built-in cooling fan with internal speed control for optimal cooling. Operation of the fan is monitored and a fault is reported should in the event of a fan failure. Three status LED’s are located on the rear of the module to provide a visual indication of the AC input, DC output, and fault status.
Atlas Sound - IED1112PSM - Features
- Built-in cooling fans with speed control to optimize cooling to suit the environmental conditions
- Overcurrent protection to prevent damage
- Universal input voltage for worldwide use
- Integrated status LED's for quick diagnostics
- Efficiency > 84% at full load
- Fault communications are relayed to the 1112PS unit for front panel fault indication
- Two modules can be used for redundancy
Specifications
Specifications
Atlas Sound - IED1112PSM - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Other Audio Equipment
- Mass Communications Systems
- GLOBALCOM® Enterprise Communication Ecosystem
- Amplifiers
Atlas Sound - IED1112PSM - Related Products
- IED1112PS - RACK POWER SUPPLY SYSTEM FOR UP TO (8) 1000 SERIES & IP100 SERIES GLOBALCOM® UNITS
Atlas Sound - IED1112PSM - Specifications
| Power Supply Voltage | 100 - 240VAC (50-60Hz) |
|---|---|
| Operating Temperature Range | 14°F - 122°F (-10°C - 50°C) |
| Rated Input Current | 8 Amps Max |
| Rated Output Voltage | +12VDC (±5%) |
| Rated Output Current | 37 Amps |
| Input Connector | IEC 60320 Type C-13 |
| Output Connector | FCI Power Blade |
| Height | 1.52" (3.9cm) |
| Storage Temperature Range | -40°F - 158°F (-40°C - 70°C) |
| Width | 3.07" (7.8cm) |
| Depth | 13.29" (33.8cm) |
| Weight | 2.6 lbs. (1.2kg) |
| UNSPSC Code | 52161600 |
