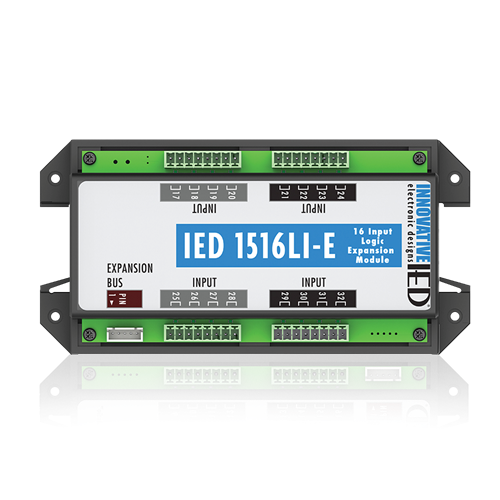

Atlas Sound IED1516LI-E | 16 Input Logic Expansion Module
Description
Description
The 1516LI-E is a 16 input expansion module that connects directly to a 1516LI to bring its total input capacity up to 32 inputs that can be driven using dry contact closures or 0 to 50VDC logic signals. A green LED is provided above each input that illuminates when activated. The announcement controller is configured using the GLOBALCOM ® System Management Center software where logic inputs can be used to launch announcements, pre-recorded messages, events, or fault reports.
The 1516LI-E receives its power through its connection to the 1516LI. The 1516LI-E connects to the 1516LI through the supplied 5-conductor expansion cable.
Atlas Sound - IED1516LI-E - Features
- For use with the IED1516LI to expand optically-isolated inputs to 32
- 16 optically-isolated inputs to interface with external equipment such as fire panels, security systems, etc.
- Control and configuration using a web browser and GLOBALCOM® System Management Center
- Settings storage in non-volatile memory
- Full integration with the IED GLOBALCOM® vACS
Specifications
Specifications
Atlas Sound - IED1516LI-E - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Other Audio Equipment
- Mass Communications Systems
- GLOBALCOM® Enterprise Communication Ecosystem
- I/O & Logic Devices
Atlas Sound - IED1516LI-E - Specifications
| Power | 1-Watt Max |
|---|---|
| Inputs | 8-pin Phoenix, 3.81 mm spacing |
| Operating Temperature Range | –22?F – +149?F (–30?C – +65?C) |
| Height | 7.01" (17.81 cm) |
| Width | 3.50" (8.90 cm) |
| Depth | 2.00" (5.08 cm) |
| Weight | 7.3 oz (206.9g) |
| UNSPSC Code | 52161600 |
