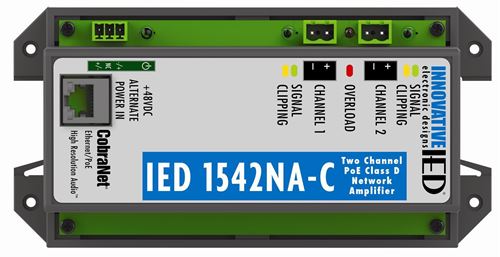

Atlas Sound IED1542NA-C | PoE Amplifier with CobraNet Network Audio

The 1542NA-C are compact power amplifier modules capable of driving small speaker loads in a GLOBALCOM ® system. The 1542NA-C provides two outputs, each with 4 watts of power into an 8? load. This makes the module ideal for powering small zones that are made up of only a few low-powered speakers.

The audio inputs to the module are through the Ethernet audio network and are configured from the GLOBALCOM ® System Management Center. Different models are available that allow the use of CobraNet ® audio networking protocols.

Both models are powered using standard PoE and draw a maximum power of 13 watts. If PoE equipment is not used, an input is provided for an external +48VDC power supply. A green power indicator LED is included to show that the unit is powered on. Each channel has a green LED indicator that illuminates when signal is present and a yellow LED to indicate clipping. Another yellow LED illuminates to indicate that the device is in thermal overload. When this condition occurs, the device will stop passing signal until the condition has cleared.

The amplifier is provided in an enclosure that either mounts to a DIN rail or is screwed down on a panel or wall to allow for convenient installation in remote closets close to the speaker zone.
