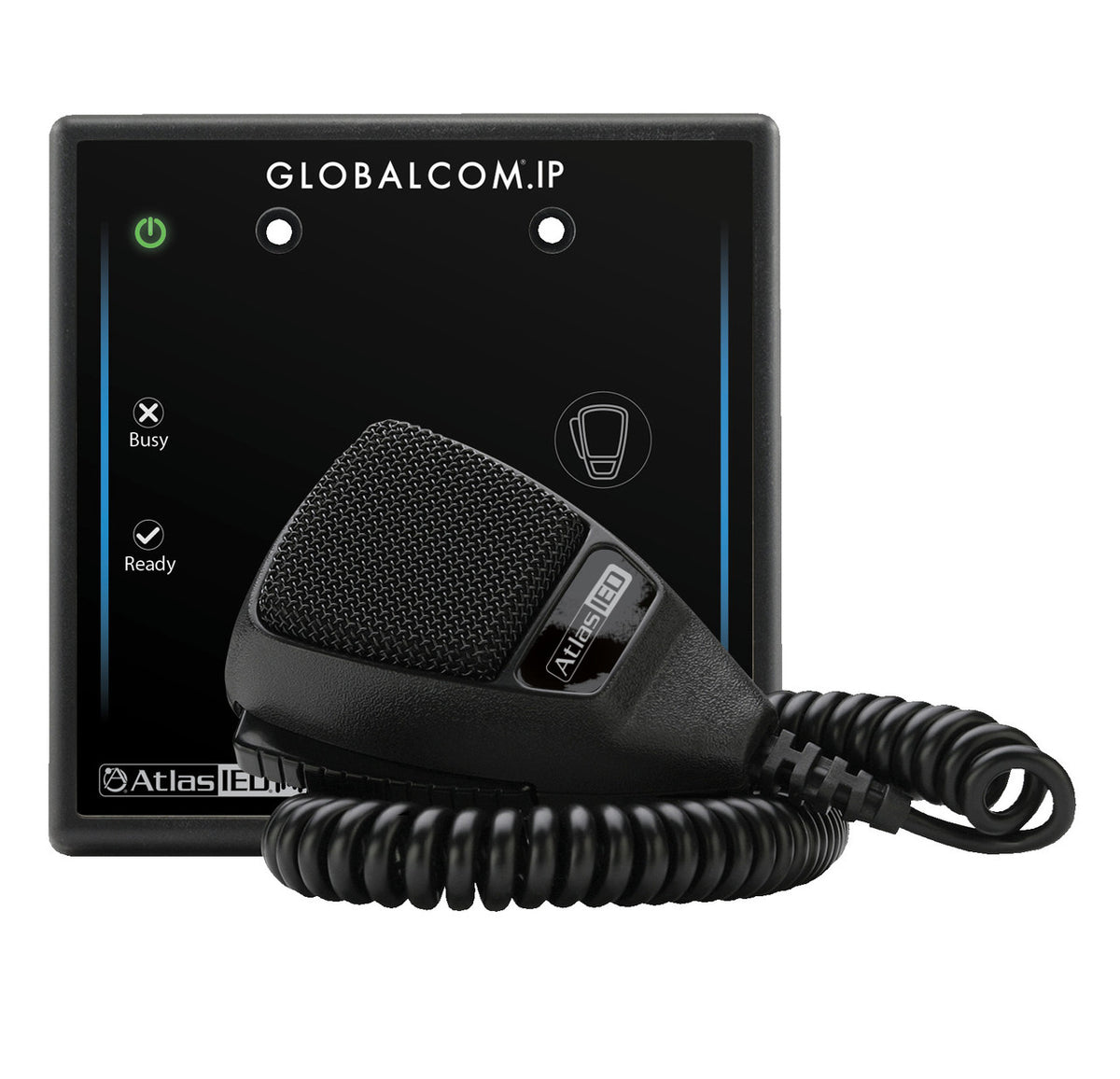

Atlas Sound IPCSD1 | Digital Microphone Station with Dante Message Channels
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound IPCSD1 | Digital Microphone Station with Dante Message ...
Description
Description
The IPCSD1 is a push-to-talk switch only digital microphone station designed to work within a GLOBALCOM®.IP system. It is a network appliance with a unique IP address that requires no configuration. The IPCSD1 uses a single Ethernet interface for audio and control data. The IPCSD1 is fully compatible with IEEE 802.3af standard for Power over Ethernet (PoE), allowing the microphone station to be powered directly from any standard off-the-shelf PoE switch.
The IPCSD1 utilizes Dante™ technology for transporting high-quality, low-latency digital audio over Ethernet. The IPCSD1 microphone station may be used for emergency evacuation and life safety systems. Instead, in a dual-use system, these microphone stations may be used for everyday paging functions.
It is compatible with IP108-D or IP116-D ACS™ Controllers with Dante™ capability.
Atlas Sound - IPCSD1 - Features
- Immediate Digitization of Full Bandwidth Audio
- Digital Audio Transmission Over Standard Ethernet Connection
- Mounts Using Standard 1- or 2-Gang Electrical Box
- Power, Busy, and Ready LED Indicators
Specifications
Specifications
Atlas Sound - IPCSD1 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Intercom
- Sub Stations
- Mass Communications Systems
- GLOBALCOM® Enterprise Communication Ecosystem
- Communication Stations
Atlas Sound - IPCSD1 - Specifications
| Frequency Response | +2dB, -5dB (22Hz - 22kHz, Input Level) |
|---|---|
| Total Harmonic Distortion | <1.0% (22Hz - 22kHz, Input Level) |
| Signal to Noise Ratio | >85dB (22Hz - 22kHz, Input Level) |
| Sample Rate | 48kHz |
| Compression Threshold | -14dBu |
| Operating Temperature Range | +32?F to +104?F (0?C to +40?C) |
| Dimensions | 4.95" W x 4.95" H x 1.9" D |
| Analog-to-Digital Converter, A/D | 24 Bit |
| Storage Temperature Range | –40?F to +158?F (–40?C to +70?C) |
| Supply Voltage | 48VDC |
| Power Consumption | < 4W |
| UNSPSC Code | 46171600 |
