Brand: Atlas Sound | SKU: 10230470

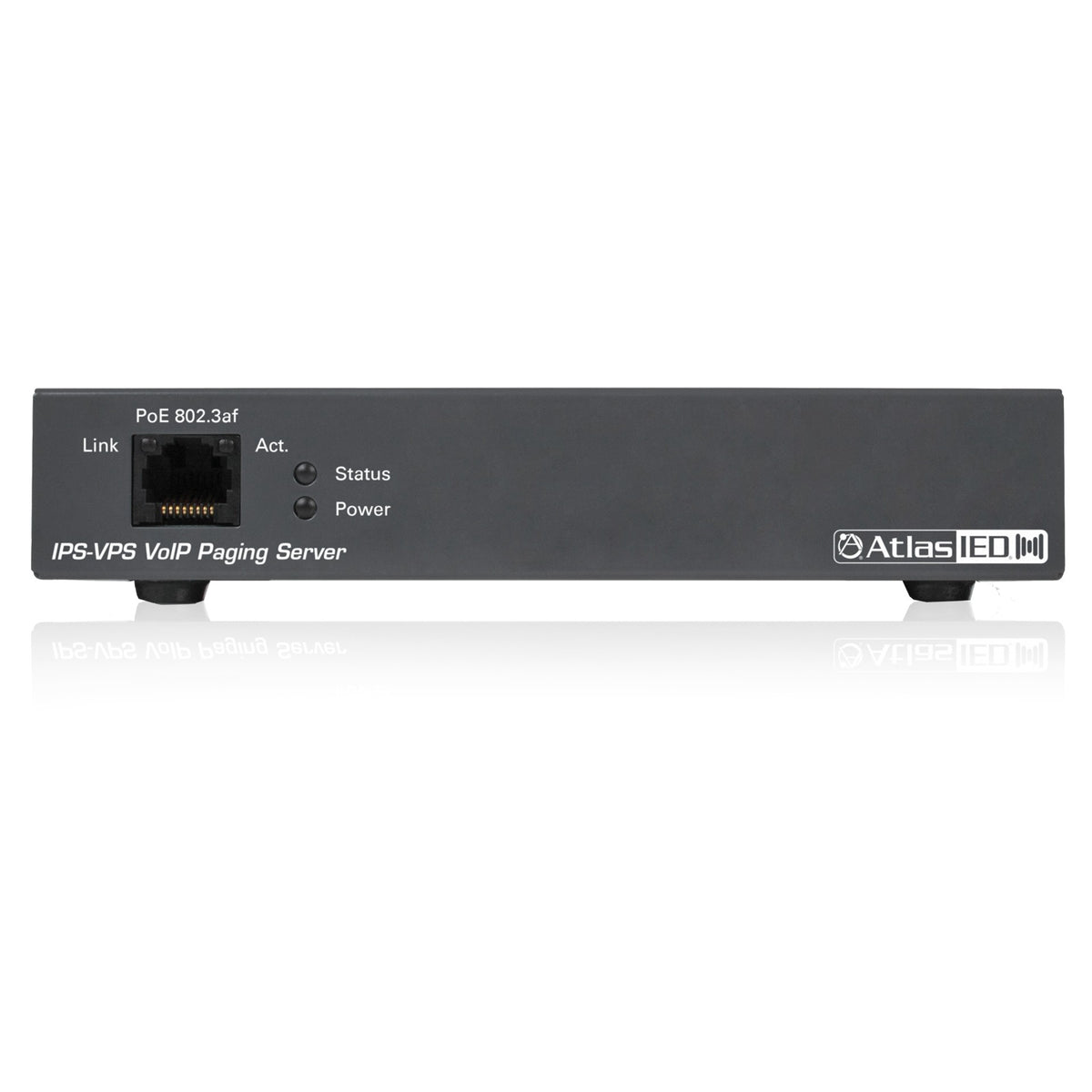

Atlas Sound IPS-VPS | VoIP V3 Paging Server

Regular price $1,448.49
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Atlas Sound IPS-VPS | VoIP V3 Paging Server

AtlasIED IPS-VPS is a VoIP paging server that is perfect for creating a group paging solution through multicast transmission for any combination of registered SIP endpoint devices and an analog overhead system in an environment where the paging servers or VoIP communications managers may not support paging groups or where 3rd party notification applications are not required.

AtlasIED IPS-VPS VoIP paging server connects directly to a SIP server or VoIP communications manager through a single SIP phone extension or line and uses DTMF control for selecting zone groups. When a caller dials a paging number, the IPS-VPS provides a one-way voice path to supported IP phones, SIP devices and/or its analog output that has been designated to receive paging, all while leveraging the WAN/LAN network architecture.

Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs; anywhere the need for critical alerts/public address exists and a single enterprise-class communications platform is preferred.

The paging mechanism supports audio distribution using IP multicast, replicated unicast, and a mixture of both (so that multicast is used where possible and unicast is used for specific phones that cannot be reached using multicast).

Atlas Sound - IPS-VPS - Features

  • Page Start Relay Contacts
  • Voice Prompting and Password Controlled Zones
  • PoE 802.3af Enabled
  • Multicast Output
  • Two SIP Endpoints (One for Night Ringer)
  • DTMF Control of Zone Selection
  • Line-In Connection for Background Music Multicasting
  • Line-Out Connection to Support Analog Amps
  • User Uploadable Audio Files
  • Supports 600 ohm Output
  • Delayed Page Support

Specifications

Atlas Sound - IPS-VPS - Product Categories

  • Shop by Manufacturer/Atlas Sound
  • Networking
  • Networking
  • Services
  • IP Solutions
  • VoIP Paging Server & Gateway

Atlas Sound - IPS-VPS - Specifications

Ethernet I/F10/100 Mbps
ProtocolSIP RFC 3261 Compatible
Power InputPoE 802.3af or 48VDC
Payload TypesG711
Operating Temperature Range-30° to 55° C (-22° to 131° F)
Regulatory ComplianceFCC Class A, UL 60950
Page Port OutputBalanced 600? 5VPP
Line In: Input Signal Amplitudes2.0 VPP Maximum
Line In: Input Impedance10k?
Line Out: Output Signal Amplitudes2.0 VPP Maximum
Line Out: Output Level+2dBm Nominal
Line Out: Total Harmonic Distortion0.5% Maximum
Line Out: Output Impedance10k?
Width6.11" (155.19mm)
Height1.15" (29.21mm)
Depth4.05" (102.87mm)
Weight1.8 lbs. (0.82kg)
UNSPSC Code81112201
