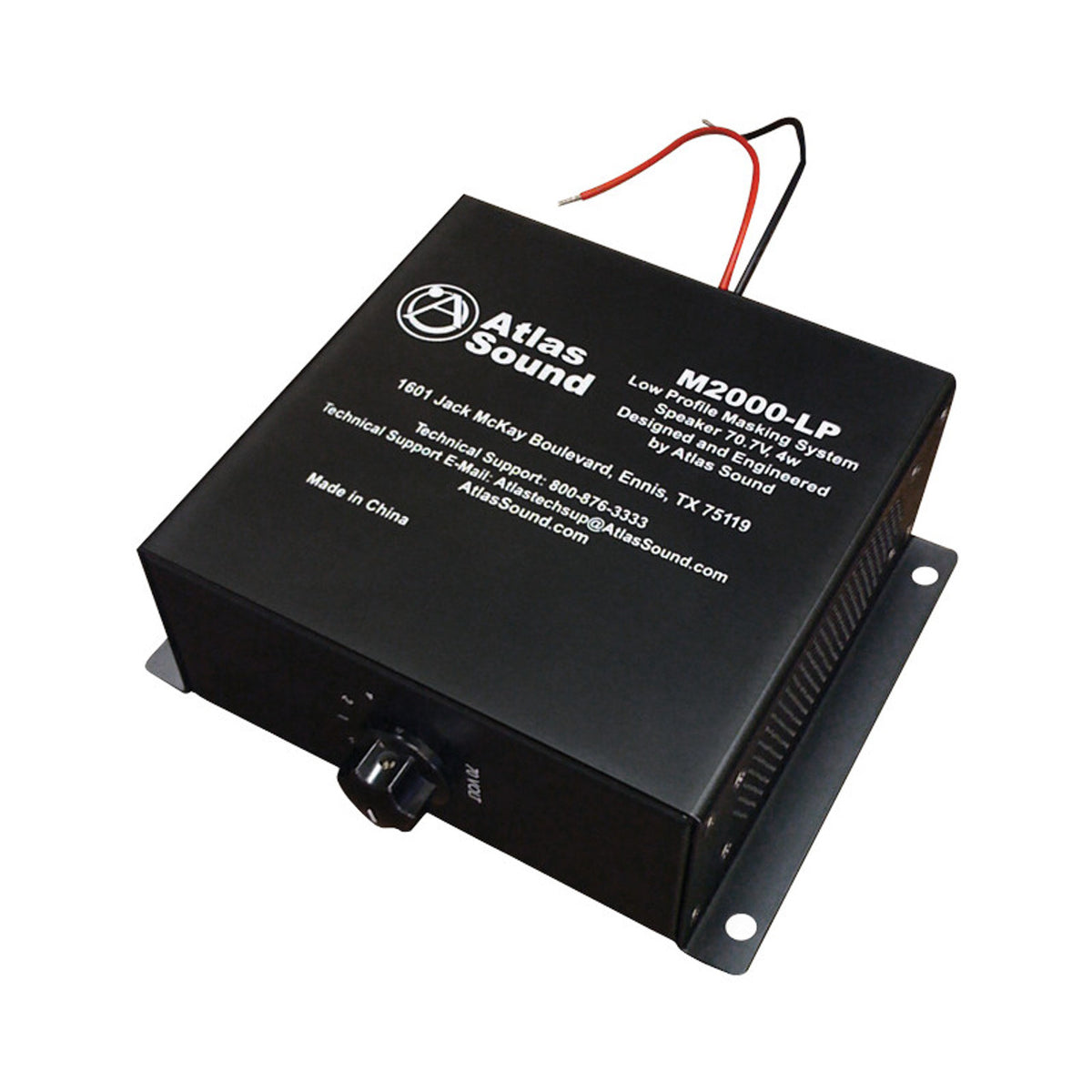

Atlas Sound M2000-LP | Dual 2 Inch x 4 Inch Sound Masking Speaker System with 70V Transformer
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound M2000-LP | Dual 2 Inch x 4 Inch Sound Masking Speaker S...
Description
Description
The M2000-LP sound masking speaker assembly is designed to accurately reproduce the required spectrum of masking signal into small plenum spaces. The innovative square enclosure ensures accurate sound masking frequency response. Specially designed 2" x 4" cone speakers (2) are included in the package. A high efficiency 70.7V internal transformer is coupled to an external tap selector switch for easy system tuning.
To meet most any local code requirement, the M2000-LP includes an innovative cover containing both knockouts and a strain relief. This system will allow the use of rigid or flexible conduit (if required) and easily accommodates "through" connections on the removable plate. UL 2043 listed for use in air handling spaces.
Note: this product requires a masking generator and 70.7V amplifier to operate.
Atlas Sound - M2000-LP - Features
- Pre-Assembled Unit Includes Two 2" x 4" Paper Cone Speakers
- Built in 70.7V Transformer with Taps Available from .25 - 4 Watts Adjustable via a Front Mounted Switch Includes an Off Setting
- Romex® Clamp Input with Two 18-Gauge Leads Color Coded in Red& Black
- UL Listed for Use in Air Handling Spaces (UL 2043)
- UL1480 Listed
Specifications
Specifications
Atlas Sound - M2000-LP - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- Sound Masking
- Sound Masking Speakers
Atlas Sound - M2000-LP - Specifications
| Height | 2 5/8" (67mm) |
|---|---|
| # Inputs | >; 4 |
| Width | 7 1/2" (191mm) |
| Depth | 7" (178mm) |
| Transformer Taps | .25, .5, 1, 2 & 4 Watts, plus an Off Setting |
| Loudspeaker | Two 2" x 4" Paper Cone Speakers |
| Weight | 3.3lb (1.49kg) |
| UNSPSC Code | 52161600 |
