Atlas Sound MWBPT | Belt Pack Wireless Microphone Transmitter
Description
Description

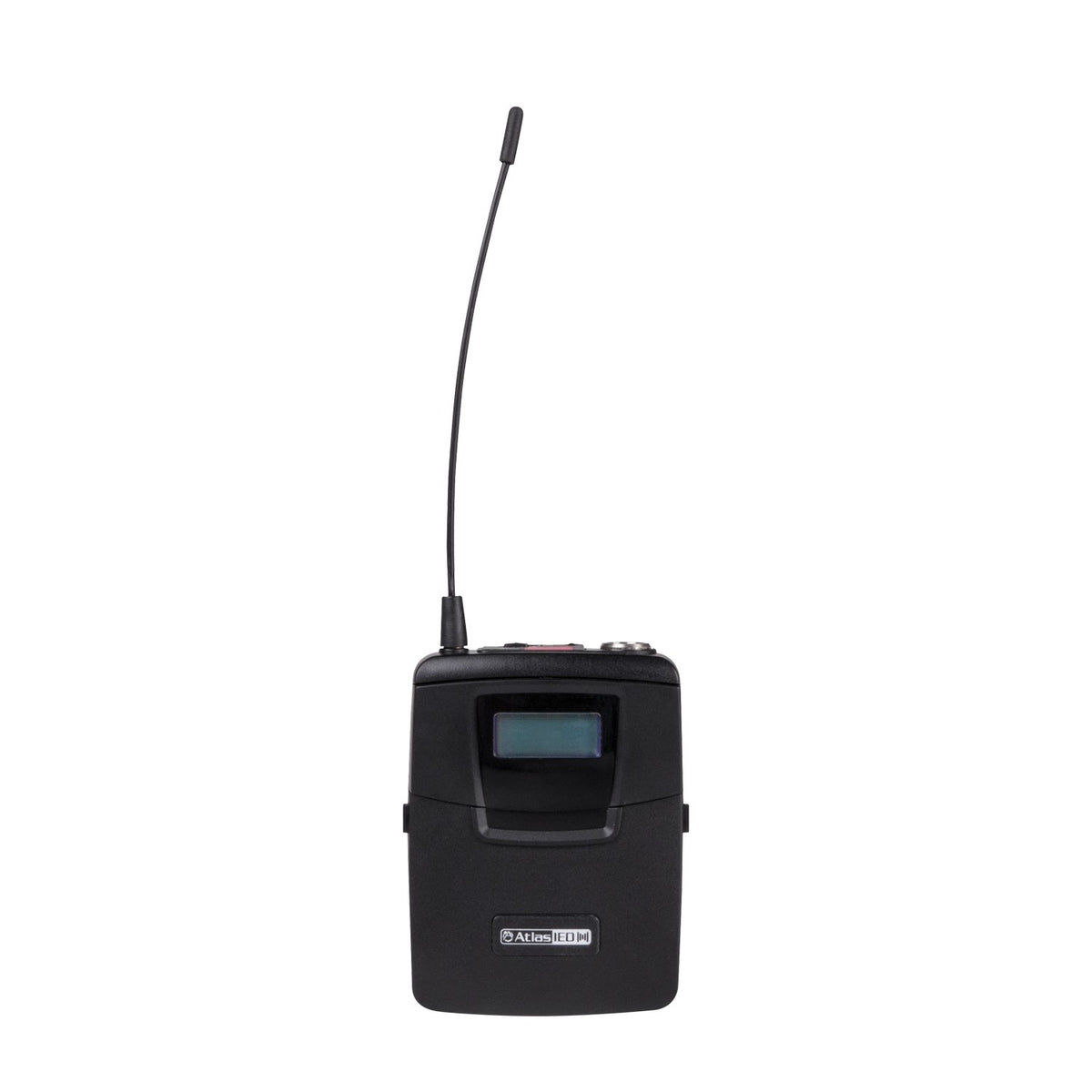

The AtlasIED MWBPT wireless belt pack transmitter is the ideal choice for a variety of applications ranging from classrooms and conference rooms to lecture halls and live presentations. The MWBPT works with either the MWOEM headset microphone or MWLM lavalier microphone. High and low impedance gain adjustments are included to ensure optimal pickup for a variety of applications. The unit is powered by either standard AA batteries or with NiMH rechargeable batteries (sold separately) allowing for up to 16 hours of usage. The unit operates on the UHF band and syncs to the wireless receiver, AtlasIED model MWRCVR, for connection to local amplification. The integrated LCD displays critical information regarding channel, frequency, and battery level.
Atlas Sound - MWBPT - Features
- Multi-Function Lcd Display For Channel / Frequency, Sensitivity, Battery Status Indicator, Alkaline / NiMH Battery Selection
- Patented Technology for 2-Way Data Transfer Between Transmitter and Receiver
- 100 Frequencies Available Through the 25MHz Signal Band
- 35mW Maximum Transmission Power
- Supports Multiple Microphone Types As Well As 1?4 Cable Connection
- Requires 2 AA Batteries to Operate
- Up to 16 Hours Operating Time
- Standard 4-Pin Mini XLR Connector
- 1?4 Wave Whip Antenna
- High and Low Impedance Gain Controls
- Detachable Belt-Clip
Specifications
Specifications
Atlas Sound - MWBPT - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Receivers
- Microphone & Mic Stands
- Microphones
Atlas Sound - MWBPT - Specifications
| Frequency Range | UFH 566MHz - 585.8MHz |
|---|---|
| Switching Bandwidth | 20Mhz |
| Switchable Frequencies | 100 |
| RF Power Output | < 35mW |
| Spurious Emission | > 60dB Below Carrier |
| Dynamic Range | > 110dB |
| Display Type | LCD |
| THD | < 0.5% |
| Dimensions | 3.31" L x 2.52" W x 0.91" H (84mm x 64mm x 23mm) |
| Weight | 0.17lbs (0.076kg) |
| UNSPSC Code | 52161521 |
