Atlas Sound PD-5VH | 40-Watt 16? Compression Driver for Large Forma...
Description
Description

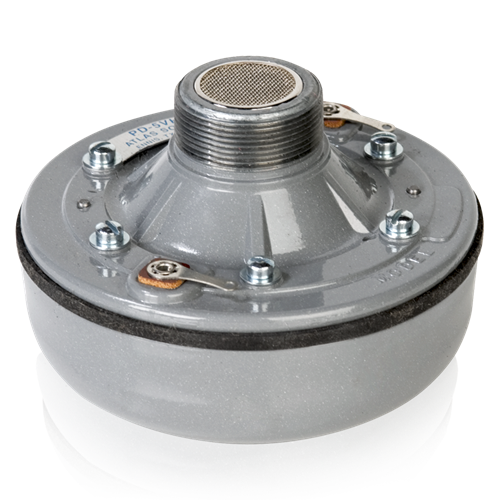

Model PD-5VH is a 40-watt driver with 2" voice coil machined to optimum tolerances.
Model PD-5VH has an Alnico V-DG magnet which offers maximum temperature stability and optimizes output for yielding the lowest amplifier power requirements. It also provides terminals for matching direct to the 16 ohm voice coil. PD-5VH offers a plane wave frequency response of 110Hz - 4.1kHz.
The durable compression driver mounts easily to large format horns that terminate in the standard 1 3/8"-18 male coupling thread.
Units are finished in grey, baked epoxy.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
Atlas Sound - PD-5VH - Features
- 40-Watt Power Rating
- Environment-Resistant Construction for Indoor/Outdoor Use
- Extended Frequency Response Range for Optimum Intelligibility
- Powerful Driver Mounts to Large Format Horns to Deliver Outstanding Sound Reproduction
Specifications
Specifications
Atlas Sound - PD-5VH - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- Speaker Components
- Speaker Drivers
Atlas Sound - PD-5VH - Specifications
| Frequency Response | 110Hz - 4.1kHz |
|---|---|
| Sensitivity | 110.7 (avg) 110 - 4,100Hz |
| Power Rating | 40W |
| Height | 5 1/8" (13.02 cm) |
| Width | 4 3/8" (11.11 cm) |
| Shipping Weight | 5.00 lbs (2.27 kgs) |
| UNSPSC Code | 52161600 |
