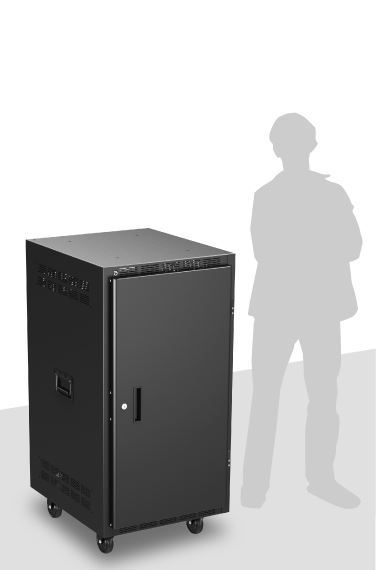

Atlas Sound RX21-25SFD | 25 inch Deep, 21RU Mobile Equipment Rack Includes: Casters, Side Handles, and Solid Doors

The RX21-25SFD mobile cabinet is ruggedly constructed of 16-gauge CRSand include heavy-duty casters. Equipped with a front pairof 11-gauge CRS adjustable mounting rails tapped 10–32 on standardE.I.A. 5/8"- 5/8"-1/2" spacing.

Optional RR21 rear mounting rails areavailable for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide openraceways for containing vertically run wire and cable.

The RX21features the additional benefit of having the supports positioned 19"apart to accept standard panel width accessories mounted in verticalorientation.Cabinet is 25 1/2" deep and has a vertical panel space height of36 7/8".It features one pair of recessed, hinged, and rubber-padded steel gripson each side (four total) for transport convenience.

Easy wiring access is provided through three wire isolation holes (two,1 1/2" dia., and one oblong 1 1/2" x 3") in the rear base flange.The units’four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lb. each – 700 lb.total weight capacity.

Also include vented and removable lockingdoors, as well as vented top-front and top-rear flanges. Surface mounting front door is 1" deep to provide clearance for equipmentknobs and handles which protrude up to 1 1/2" from the front of the rail.Cabinet is finished in #962 black epoxy.
