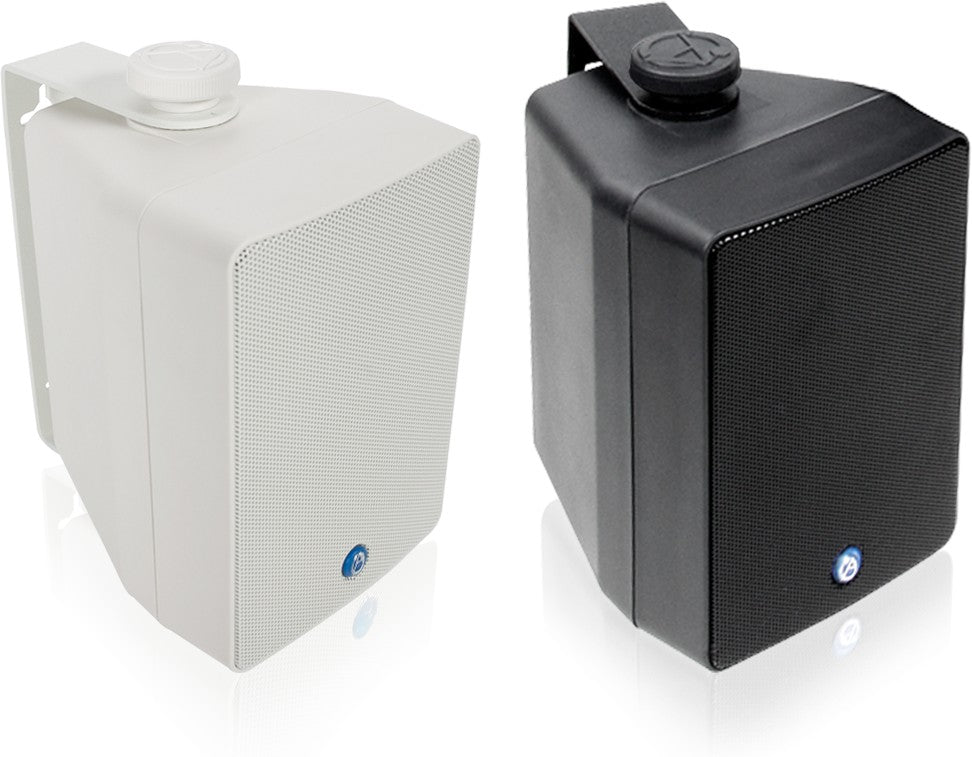

Atlas Sound SM42T-WH | 4 Inch 2-Way All Weather Speaker with 16-Watt 70V/100V Transformer in Black or White
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound SM42T-WH | 4 Inch 2-Way All Weather Speaker with 16-Wat...
Description
Description
All AtlasIED Strategy Series speaker systems are designed to provide high fidelity, long life and installation convenience for commercial and residential applications. Because of their weather-resistant properties they are perfect for use indoors or out. The SM42T includes a 4" woofer and 1" tweeter as well as an integrated 70.7V / 100V transformer and 8? bypass for direct coupled applications.
Use surface-mount AtlasIED SM42T Series speaker systems for commercial, professional and residential applications or where high-fidelity sound and weather-resistance is desired. Full-range frequency response makes these systems ideal for indoor and outdoor installation, in monaural and stereo foreground or background music systems, and for applications in boutiques/shops, restaurants/cafes, corporate AV applications and houses of worship. Multi-position, C-shaped mounting bracket and rugged construction provide optimum installation flexibility and assurance of long-term service.
Atlas Sound - SM42T-WH - Features
- 1" Ferrofluid™ Cooled Dome Tweeter & Highly Efficient 4" Polypropylene Woofer
- All 1/4"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
- Atlas Sound POLYGUARD™ High Frequency Protection Circuit
- Available in Black or White
- Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
- Five-Year Warranty
- Screwdriver Adjustable 16-Watt 70.7V/100V Transformer (may be bypassed for 8-ohm operation)
- TRX WAVEGUIDE™- Constant Directivity Style High Frequency Wave Guide System
- Weather-Resistant Construction for Year-Round Indoor or Outdoor Use
- OMNIMOUNT™ Compatible
- UL Certified, Safety Listed to UL1480A
- Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog-leg" mounting system
- Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
- Input section allows for through conduit runs with rigid or flex conduit
- 4-pole detachable "Phoenix" style connector allows easy pre-wiring and is convenient for daisy chaining additional Strategy full range speakers or subwoofers (all models except FAP40T)
- Press fit grilles blend better into contemporary architecture
- Enhanced quality 70.7 V/100 V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
Specifications
Specifications
Atlas Sound - SM42T-WH - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Horns
- Speakers
- Surface Mount
- SM Series All-Weather Speakers
Atlas Sound - SM42T-WH - Related Products
- SMBALLMOUNT-B,SM52T-B - Optional Ball Bracket for SM42 (Black),5.25" 2-Way All Weather Speaker with 30-Watt 70V/100V Transformer (Black)
- SMBALLMOUNT-B,SM52T-B - 5.25" 2-Way All Weather Speaker with 30-Watt 70V/100V Transformer (White)
- SM82T-B - 8" 2-Way All Weather Speaker with 60-Watt 70V/100V Transformer (Black)
- SM82T-WH - 8" 2-Way All Weather Speaker with 60-Watt 70V/100V Transformer (White)
Atlas Sound - SM42T-WH - Specifications
| Power Taps | 2, 4, 8 & 16-Watt and 8? |
|---|---|
| Speaker Type | Surface Mount |
| Sensitivity | 88dB |
| Frequency Response | 115Hz - 16kHz |
| Height | 7" (17.78 cm) |
| Depth | 5 15/16" (15.03 cm) |
| Width | 5" (12.7 cm) |
| Shipping Weight | 5.00 lbs (2.27 kgs) |
| UNSPSC Code | 52161600 |
Atlas Sound - SM42T-WH - Videos
| Welcome to AtlasIED | Click to View |
|---|---|
| AtlasIED - With Over 2,000 Products... We Have All the Essentials You Need | Click to View |
| AtlasIED's Official Youtube Channel | Click to View |
