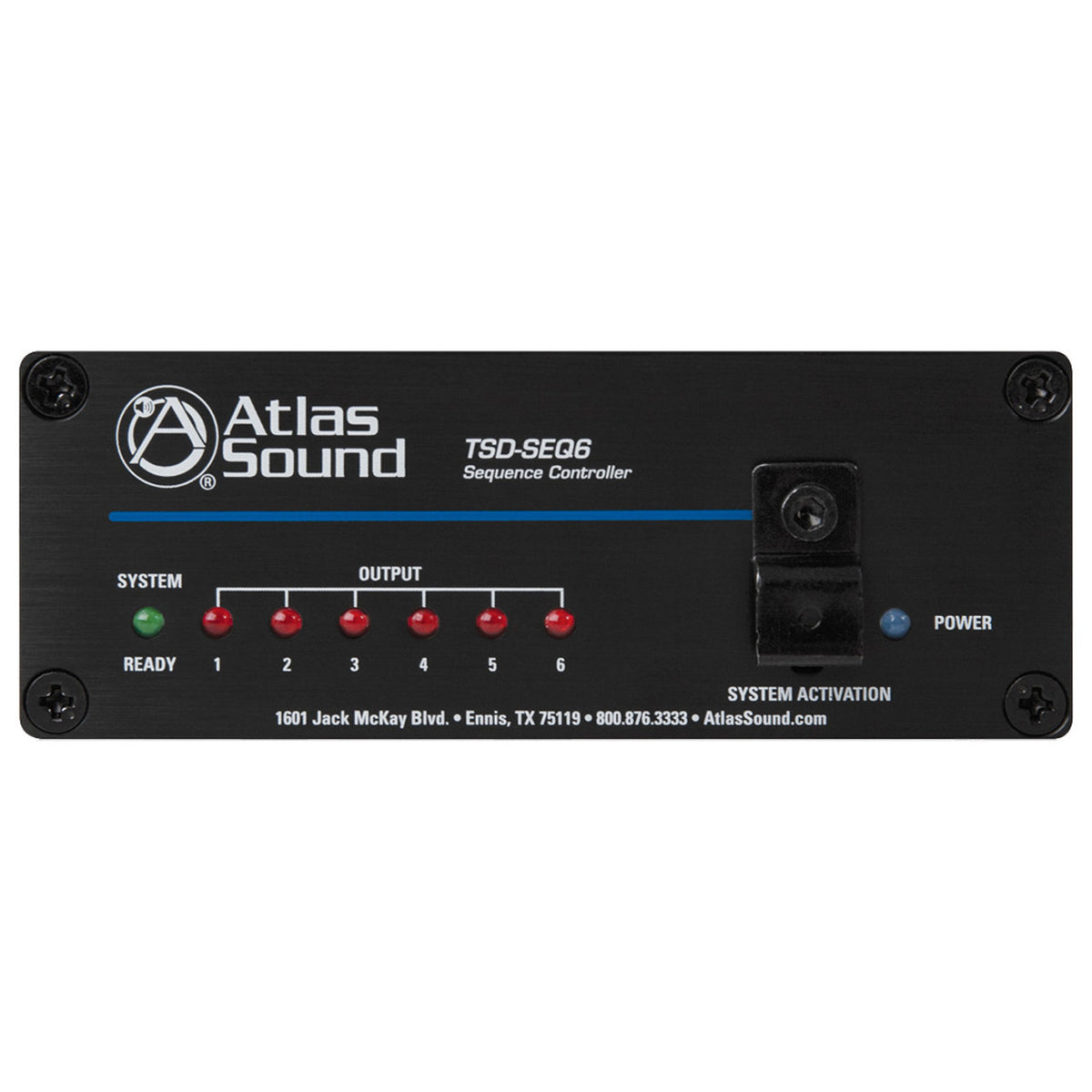

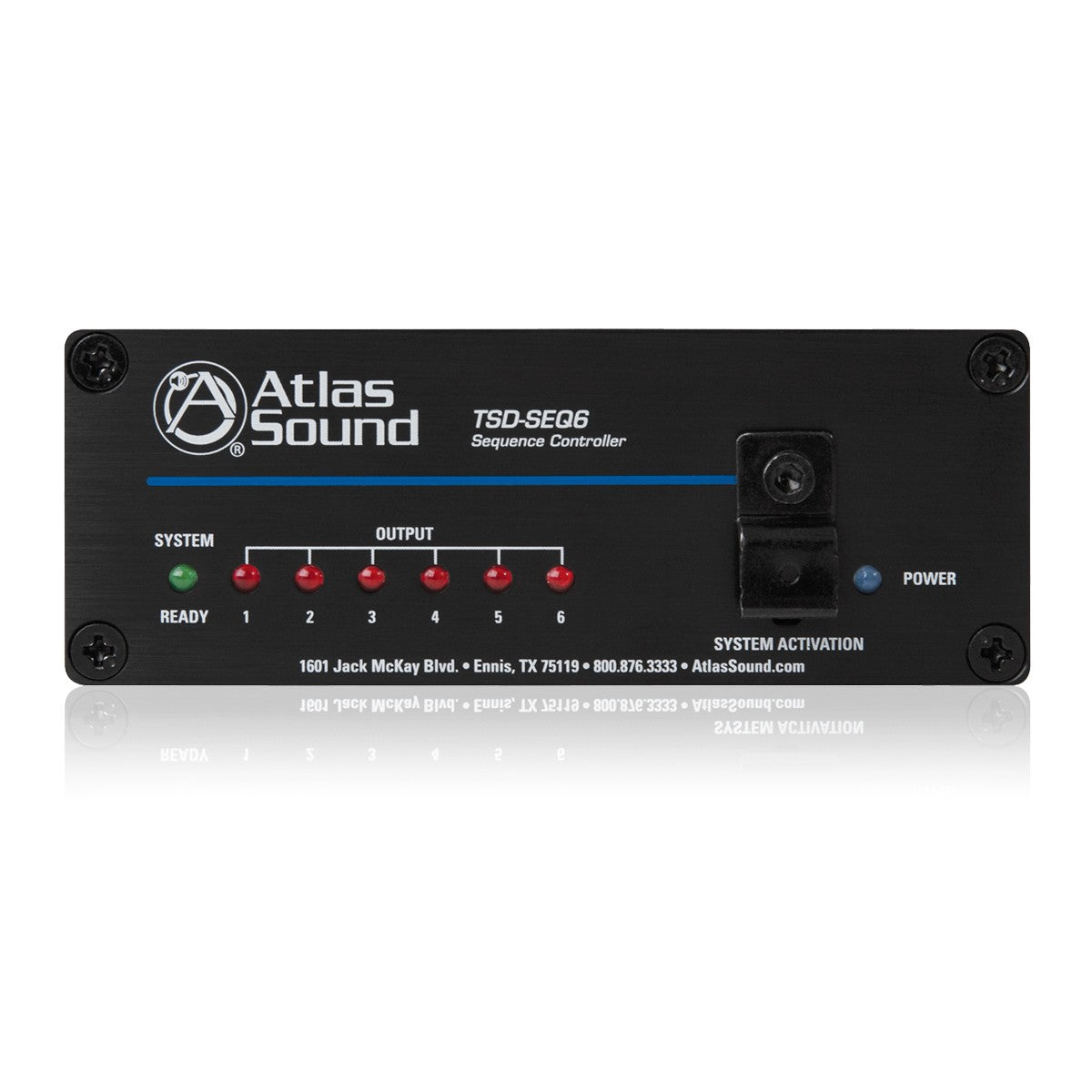

Atlas Sound TSD-SEQ6 | AC Sequence Controller
Description
Description
The AtlasIED TSD-SEQ6 Sequencer Controller features 6 outputs that are configurable individually to be either a 24VDC output or Hard Switch Contact Closure (CC). There are two separate output sequence time delay trimmers ranging from 1 second to 10 minutes. Activation can be done via the front panel or remotely via Hard Switch CC, Momentary Switch or DC Voltage. The TSD-SEQ6 also incorporates an Emergency Power Down (EPD) port for local fire codes. You can link two TSD-SEQ6 units together giving you 12 sequenced outputs.
Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 100mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
Atlas Sound - TSD-SEQ6 - Features
- 6 Sequenced Outputs
- Assignable 24VDC or Hard Switch Contact Closure (CC) per Output
- Sequence 1 is Adjustable: Delay Time 1 Second to 10 Minutes
- Sequences 2 - 6 are Adjustable: Delay Time 1 Second to 1 Minute
- Remote Activation via 5-24VDC, Momentary Contacts, Hard Switch Contacts
- Status Indicator for Each Output
- Emergency Power Down "EPD" Port
- Link Out for Two TSD-SEQ6 Controllers
- Voltage Output for Remote LED Status Display
- Separate Wiring Port for Each I/O
- Removable Phoenix Style I/O Connectors
- Power Supply Sold Separately
Specifications
Specifications
Atlas Sound - TSD-SEQ6 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Conferencing
- Other Conferencing
- DSP / Signal Processors
- Audio Processing
Atlas Sound - TSD-SEQ6 - Related Products
- TSD-PS24V500MA - 500MA 24VDC TSD Power Supply
- TSD-PS24V500MA - 2500MA 24VDC TSD Power Supply
- ECM-2063 - 20A+20A+20A AC Power Distribution Sequencer Raceway
Atlas Sound - TSD-SEQ6 - Specifications
| Chassis Construction | Black Aluminum |
|---|---|
| Power Consumption | 100mA |
| Sequence Status Indicator | Green, Qty 1 |
| Output Status Indicator | Red, Qty 6 |
| Height | 1.5" (39mm) |
| Depth | 2.75" (70mm) |
| UNSPSC Code | 45111700 |
