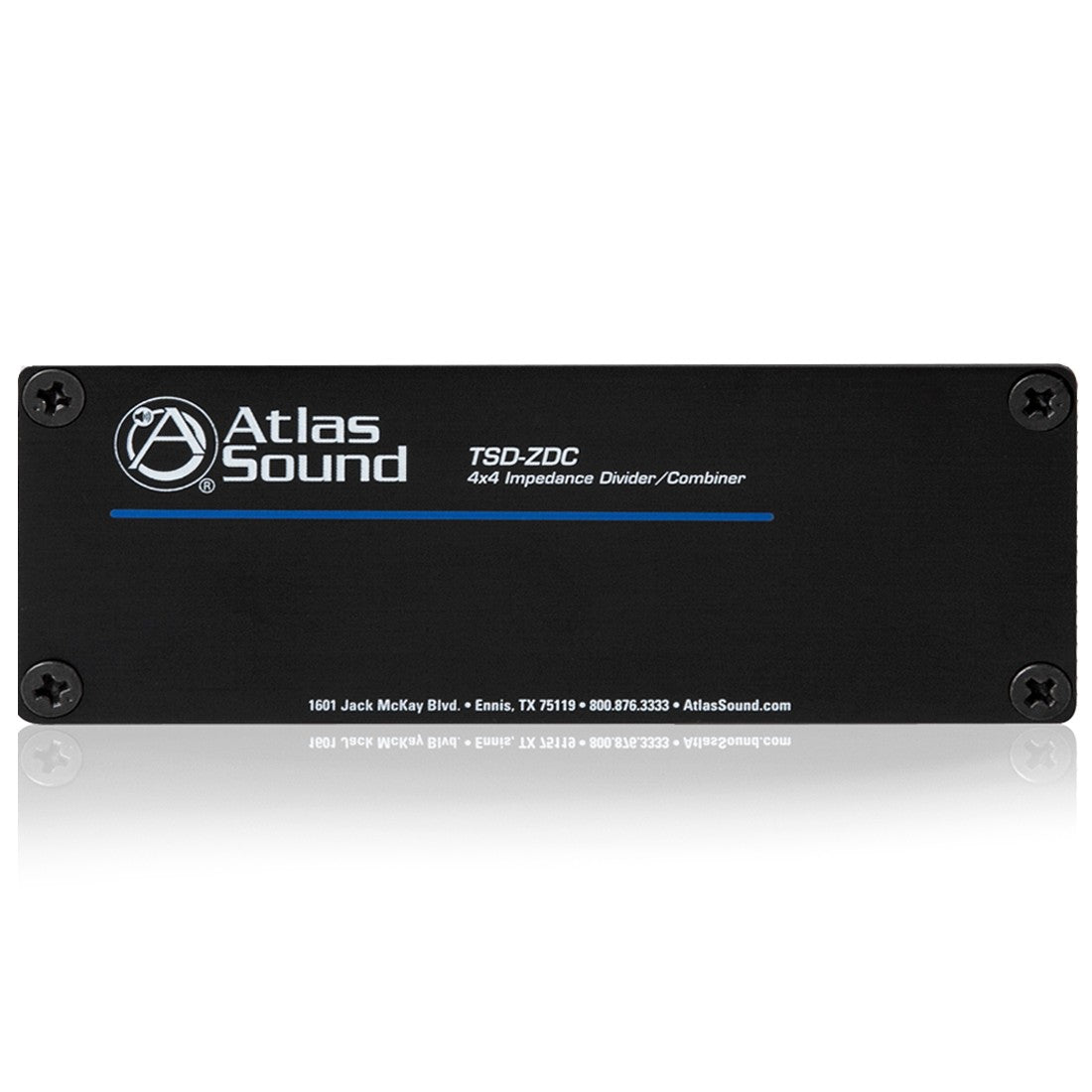

Atlas Sound TSD-ZDC | 4 x 4 Impedance Divider / Combiner
Description
Description
The TSD-ZDC is a universal impedance divider/combiner for passively summing or splitting of mic or line level signals. Features include four unbalanced 10K and four balanced 150? inputs/outputs that may be passively split or combined in any arrangement. Typical applications include passive summation of multiple 150? mics or stereo 10?K sources and passive splitting of 150? or 10K? input sources to multiple outputs.
To ease contractor use and installation the TSD-ZDC includes individual ground connectors for each input/output. The unit's compact footprint allows for easy standalone mounting or an optional rack mount adapter may be used to facilitate up to (4) TSD devices.
Atlas Sound - TSD-ZDC - Features
- Four (4) 150? Stereo Input/Outputs
- Four (4) 10K Stereo Input/Outputs
- Split or Combine Any Signal
- RF Filtering on All Inputs
- Individual Input Grounds
- Removable I/O Connectors
- No External Power Required
Specifications
Specifications
Atlas Sound - TSD-ZDC - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- AV Cable and Connectors
- AV Adapters and Couplers
- DSP / Signal Processors
- Audio Processing
Atlas Sound - TSD-ZDC - Related Products
- TSD-PS24V500MA - 500MA 24VDC TSD Power Supply
- TSD-PS24V500MA - 2500MA 24VDC TSD Power Supply
Atlas Sound - TSD-ZDC - Specifications
| 150? Network Inputs/Outputs | 4, Passive Balanced Networks, Any Channel Can Be Input or Output |
|---|---|
| Frequency Response | 20Hz - 20kHz |
| Height | 1.5" (3.81 cm) |
| Width | 4" (10.16 cm) |
| Depth | 2.5" (6.35 cm) |
| Weight | 6oz., .165kg |
| UNSPSC Code | 45111500 |
