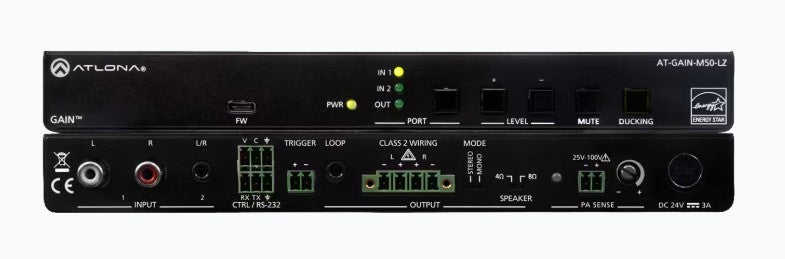

Atlona Technologies AT-GAIN-M50-LZ | Gain 50W Mixer Amplifier
Description
Description
The Gain Audio AT-GAIN-M50-LZ is a compact 50-watt mixer amplifier designed for commercial and educational AV installations that require dependable audio performance in small to medium spaces. Delivering 25 watts per channel into 4 or 8 ohms, it includes a two-input mixer with microphone and line-level inputs, plus ducking and priority control for automatic source management during presentations or paging. Featuring RS-232 and TCP/IP control, the AT-GAIN-M50-LZ integrates easily with AV control systems, while its plenum-rated, convection-cooled chassis supports discreet installation in ceilings or equipment enclosures. Ideal for classrooms, conference rooms, and corporate AV systems.
Specifications
Specifications
Atlona Technologies - AT-GAIN-M50-LZ - Specifications
| Manufacturer Part Number | AT-GAIN-M50-LZ |
|---|---|
| Brand Name | Atlona Technologies |
| Item Description | Gain 50W Mixer Amplifier |
| Nominal Output | 0.316 Vrms balanced, 20 Hz – 20 kHz, <150 ? |
| Maximum Output | 3.162 Vrms balanced, 20 Hz – 20 kHz, <150 ? |
| Amplifier Type | Class D |
| Frequency Response | 20 Hz – 20 kHz, ±2 dB |
| THD+N | <0.1% @ 1 kHz and <0.3% @ 100 Hz – 16 kHz |
| IMD (ITU-R) | <1%, 100 Hz – 15 kHz |
| Crosstalk | -80 dB, 20 Hz – 20 kHz, +4 dBu, channel-to-channel |
| Rs-232 Port | 2 x 3-pin captive screw |
| Rs-232 Use | Unit and external device control and configuration |
| Baud Rates | 9600, 19200, 38400, 57600, 115200 |
