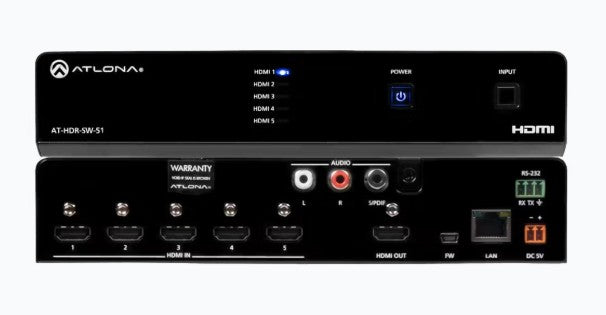

Atlona Technologies AT-HDR-SW-51 | HDR 5 x 1 HDMI Switcher
Description
Description
The AT-HDR-SW-51 is a compact 5-input/1-output HDMI switcher designed for modern AV spaces that require flexible source routing and HDR support. It handles full 4K/UHD resolution, supports HDR formats like HDR10 and HLG, and includes features such as automatic input detection and audio de-embedding for integration with external sound systems. Ideal for conference rooms, educational spaces, and smaller commercial setups, this switcher allows multiple HDMI sources to be managed cleanly through a single display output with professional control options.
Specifications
Specifications
Atlona Technologies - AT-HDR-SW-51 - Specifications
| Manufacturer Part Number | AT-HDR-SW-51 |
|---|---|
| Brand Name | Atlona Technologies |
| Item Description | HDR 5 x 1 HDMI Switcher |
| HDMI IN | 5 x Type A, 19-pin female |
| HDMI OUT | 1 x Type A, 19-pin female |
| LAN | 1 x RJ45 |
| L/R | 2 x RCA, female |
| S/PDIF OUT | 1 x RCA, female |
| RS-232 | 1 x 3-pin captive screw |
| FW | 1 x mini-USB |
| DC 5V | 1 x 2-pin captive screw |
| Operating Temperature | +32 to +122°F |
| Storage Temperature | -4 to +140°F |
