Atlona Technologies AT-OME-SW21-TX | 2x1 AV Switcher HD BaseT Trans...
Description
Description

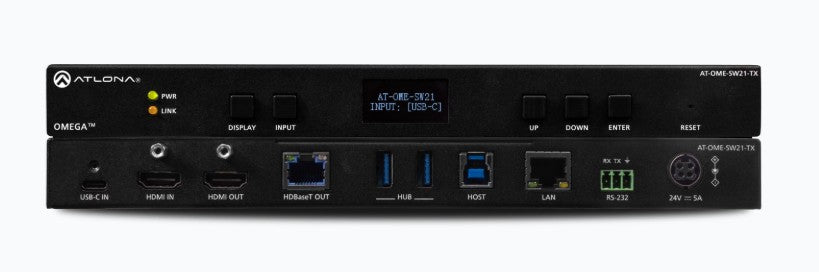

The AT-OME-SW21-TX is a 2×1 switcher and HDBaseT transmitter designed for modern meeting, lecture, and hybrid collaboration spaces—offering one USB-C plus one HDMI input, mirrored HDMI and HDBaseT outputs, and a built-in USB 3.2 Gen 1 hub. It supports 4K/UHD video (up to 60 Hz with 4:2:0 chroma), optional 60?W USB-C device charging, and extends AV, USB data, Ethernet, control and power up to ~330 ft (100 m) over category cable. It enables automatic input switching and display-power control (CEC, RS-232 or IP) so when a laptop lands in the wall plate the screen fires up; pull the plug and it shuts off. Sleek one-gang wall-plate form factor with black/white trims makes it ideal for table or lectern installs without extra bulk.
Specifications
Specifications
Atlona Technologies - AT-OME-SW21-TX - Specifications
| Manufacturer Part Number | AT-OME-SW21-TX |
|---|---|
| Brand Name | Atlona Technologies |
| Item Description | 2x1 AV Switcher HD BaseT Transmitter |
| Signal | USB 3.2 Gen 1 & USB 2.0 |
| Maximum Data Rate | USB 3.2 Gen 1: 5 Gbps; USB 2.0: 480 Mbps |
| Hosts | 1 x USB 3.0 Type-C and 1 x USB 3.0 Type-B host |
| Internal Hub | 1 |
| USB-C Connector | 1 x USB Type-C, 24-pin female |
| HDMI Connectors | 2 x Type A, 19-pin female |
| HDBaseT Out | 1 x RJ45 |
| Host Connector | 1 x USB Type-B, female, 3.0 |
| Hub Connectors | 2 x USB Type-A, female, 3.0 |
| PWR Indicator | 1 x Green LED |
