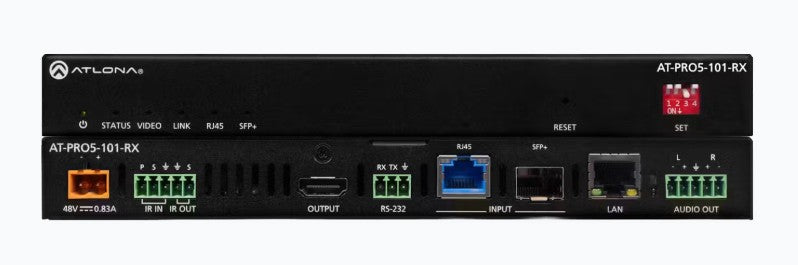

Atlona Technologies AT-PRO5-101-RX | 4K Fiber/Copper Receiver
Description
Description
The AT-PRO5-101-RX is a high-performance SDVoE-based receiver purpose-built for ultra-long-distance AV distribution. It accepts a 10 GbE signal—either over CAT6a/7 (~100 m) or via fiber (via SFP+ up to kilometers)—and outputs 4K/UHD @ 60 Hz with full 4:4:4 chroma, HDR compatibility, and HDCP 2.3 compliance. It also carries embedded audio, Gigabit Ethernet, bidirectional IR/RS-232 control, and features audio de-embedding for interfacing with external sound systems. The unit can be powered remotely via PoE from the compatible matrix switcher or locally when required, making it ideal for commercial-grade installations in lecture halls, hospitality venues, courtrooms and multi-zone AV systems.
Specifications
Specifications
Atlona Technologies - AT-PRO5-101-RX - Specifications
| Manufacturer Part Number | AT-PRO5-101-RX |
|---|---|
| Brand Name | Atlona Technologies |
| Item Description | 4K Fiber/Copper Receiver |
| Bit Depth | Up to 24 bits |
| Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Format | Stereo 2-Channel |
| Audio Type | Balanced Audio |
| Ethernet Port | 1 x RJ45 |
| Ethernet Speed | 10/100/1000 Mbps |
| Addressing | DHCP, Static, APIPA |
| Rs-232 Port | 1 x 3-pin captive screw (TX, RX, GND) |
| Rs-232 Use | Pass-through from AT-PRO5-MX810 |
| Baud Rates | 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
