Atlona Technologies AT-PRO5-MX810 | 8x10 Fiber/Copper Matrix Switcher
Description
Description

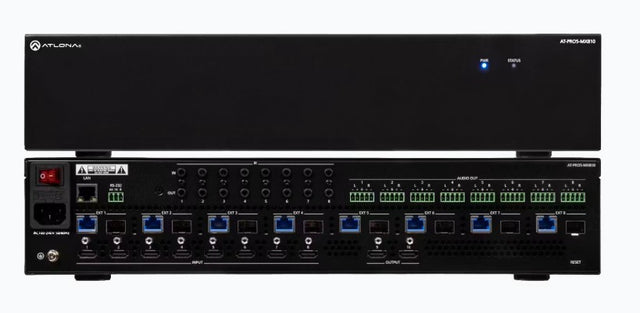

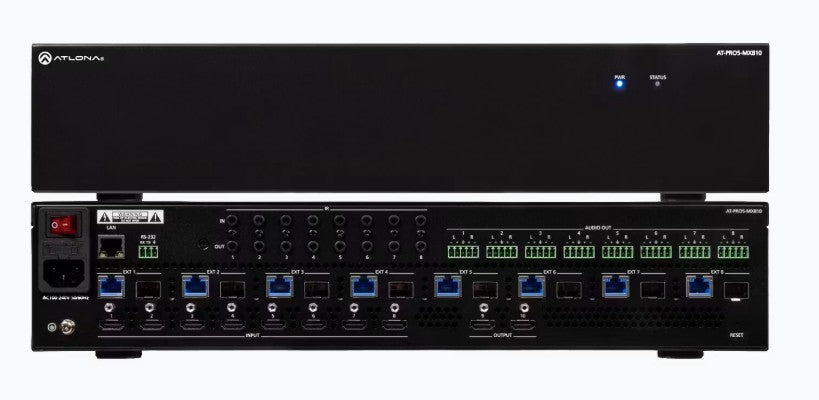

The AT-PRO5-MX810 is a high-end 8×10 HDMI matrix switcher designed with next-generation SDVoE® (10 GbE) outputs for ultra-long-distance AV distribution. It offers eight HDMI inputs, two local HDMI outputs, and eight extension outputs that transmit video, audio, Ethernet and control over copper or fiber to companion receivers. It supports full 4K @ 60 Hz (4:4:4), HDR formats and is HDCP 2.3 compliant. Additional features include an independent audio matrix, display control (CEC/RS-232/IR), PoE over extension links for powering receivers, and fiber/copper flexibility — making it ideal for large-scale commercial installs like lecture halls, video walls, hospitality venues, and distributed-display systems.
Specifications
Specifications
Atlona Technologies - AT-PRO5-MX810 - Specifications
| Manufacturer Part Number | AT-PRO5-MX810 |
|---|---|
| Brand Name | Atlona Technologies |
| Item Description | 8x10 Fiber/Copper Matrix Switcher |
| Cec Ports | 2 x HDMI Out, Type A, 19-pin female |
| Cec Triggering | IP, RS-232, and built-in web server |
| Hdmi In/Out Distance | 15 ft (4K/UHD), 30 ft (1080p) |
| CAT6a Distance | 330 ft (4K/UHD), 330 ft (1080p) |
| Buttons | Reset (1 x momentary, recessed) |
| Indicators | Pwr (1 x blue LED); Status (1 x blue/red/off LED) |
| Input | 8 x Type A, 19-pin female |
| Output | 2 x Type A, 19-pin female |
| Ext 1–8 (SDVoE) | 8 x RJ45 female; 8 x SFP+ cage female |
| Rs-232 | 1 x 3-pin captive screw |
