Atlona Technologies ATHDREX100CEATX | HDR HD Base T Transmitter
Description
Description

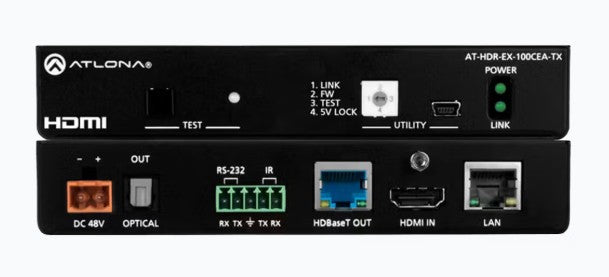

The Atlona AT-HDR-EX-100CEA-TX is a high-performance transmitter for HDBaseT extension, enabling full-bandwidth HDMI video—including 4K/UHD at 60 Hz with 4:4:4 chroma and HDR formats (HDR10, HLG, Dolby Vision)—to be sent over up to 100 meters (roughly 330 feet) of Category 6/6A cable. It also supports HDCP 2.2 compliance and allows pass-through of Ethernet, RS-232, and IR signal control, while offering PoE-powered installation for clean wiring and flexibility in commercial AV, education, and enterprise environments.
Specifications
Specifications
Atlona Technologies - ATHDREX100CEATX - Specifications
| Manufacturer Part Number | ATHDREX100CEATX |
|---|---|
| Brand Name | Atlona Technologies |
| Item Description | HDR HD Base T Transmitter |
| Hdmi In | 1 x Type A, 19-pin female |
| HdBaseT Out | 1 x RJ45 |
| Optical Out | 1 x TOSLINK™ |
| Rs-232 / Ir | 1 x 5-pin captive screw |
| Utility | 1 x Mini-USB |
| Lan | 1 x RJ45 |
| Dc 48V | 1 x 2-pin captive screw |
| Operating Temperature | +32 to +122°F |
| Storage Temperature | -4 to +140°F |
| Operating Humidity (RH) | 20% to 90%, non-condensing |
