Atlona Technologies ATPRO5101SCRX | 4K Fiber/Copper Receiver with S...
Description
Description

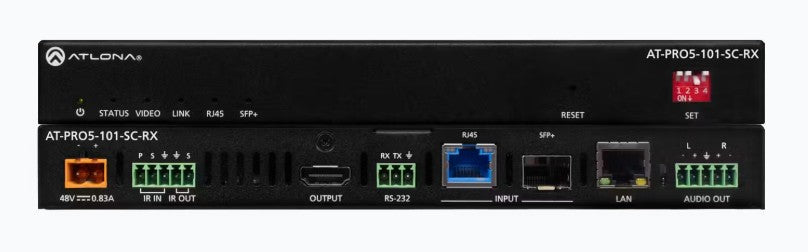

The AT-PRO5-101-SC-RX is a high-end AV extension receiver built for use with the PRO5 Series matrix switcher in commercial installations. It provides 10 GbE SDVoE input via copper (CAT6a/7 up to 100 m) or fiber (SFP+ up to 10 km), supports full 4K @ 60Hz with 4:4:4 chroma and HDR formats, and features built-in video-processing capabilities such as up-/down-scaling and video-wall layout (2×2, 1×3, 2×4). The unit also offers HDCP 2.3 compliance, audio de-embedding, Gigabit Ethernet pass-through, and remote power (PoE) when used with the compatible matrix switcher, giving integrators a flexible, future-proof solution for multi-zone AV distribution, long-distance extension and video wall systems.
Specifications
Specifications
Atlona Technologies - ATPRO5101SCRX - Specifications
| Manufacturer Part Number | ATPRO5101SCRX |
|---|---|
| Brand Name | Atlona Technologies |
| Item Description | 4K Fiber/Copper Receiver with Scaling |
| Bit Depth | Up to 24 bits |
| Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Format | Stereo 2-Channel |
| Audio Type | Balanced Audio |
| Ethernet Port | 1 x RJ45 |
| Ethernet Speed | 10/100/1000 Mbps |
| Addressing | DHCP, Static, APIPA |
| Rs-232 Port | 1 x 3-pin captive screw (TX, RX, GND) |
| Rs-232 Use | Pass-through from AT-PRO5-MX810 |
| Baud Rates | 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
