Brand: Belden
|
SKU:
323-321-1601-B-06

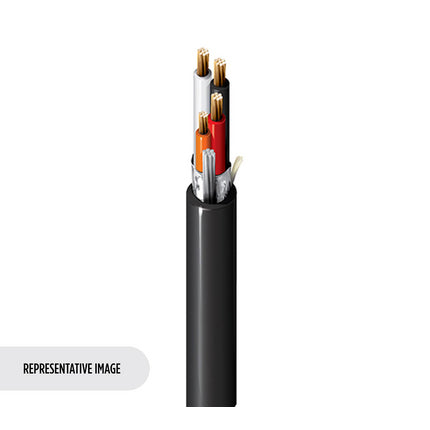

Belden 1031A 0061000 | Inst, 1 Tri #16 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC-ER ITC-ER CMG
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1031A 0061000 | Inst, 1 Tri #16 Str BC, PVC Ins E1, OS, Blk ...
Regular price
$3.00
Unit price
Brand: Belden
|
SKU:
323-321-1601-B-06
Regular price
$3.00
Unit price
Shipping calculated at checkout.
Description
Description
UL Instrumentation, 1 Triad 16AWG (7x24) Bare Copper, PVC Insulation E1 Color Code, Overall Beldfoil Shield, Black PVC Outer Jacket, PLTC-ER ITC-ER CMG AWM 2464 SUN RES
Specifications
Specifications
Product Overview
| Suitable Applications | Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),RTD, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, actuators, positioners |
|---|
Mechanical Characteristics
| Max. Pull Tension | 61 lbs |
|---|---|
| Bulk Cable Weight | 56 lbs/1000ft |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
| Flammability / Fire Resistance | UL1685 (FT4 Loading), FT4, 1202 |
| NEC / UL Compliance | Article 725, Article 727, Article 800, CMG, PLTC-ER, ITC-ER |
| AWM Compliance | 2464 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
