Brand: Belden
|
SKU:
323-321-1801-B-DY0

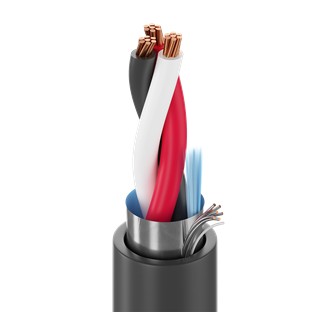

Belden 1036A | Instrumentation 1 Triad# 18 Stranded Bare Copper, PVC Insulation E1, OS, Black PVC Jacket, 300V PLTC ITC CMG
Regular price
$2.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1036A | Instrumentation 1 Triad# 18 Stranded Bare Copper, PV...
Regular price
$2.70
Unit price
Brand: Belden
|
SKU:
323-321-1801-B-DY0
Regular price
$2.70
Unit price
Shipping calculated at checkout.
Description
Description
Belden 1036A | Instrumentation 1 Triad# 18 Stranded Bare Copper, PVC Insulation E1, OS, Black PVC Jacket, 300V PLTC ITC CMG
UL Instrumentation, 1 Triad 18AWG (7x26) Bare Copper, PVC Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES.
Specifications
Specifications
Belden - 1036A - Specifications
| Element | Triad(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | 7x26 |
| UL Temperature | 105°C |
| Stationary Min. | 3.2 in (81 mm) |
| Installation Min. | 3.2 in (81 mm) |
| Max. Pull Tension | 81 lbs (37 kg) |
| Bulk Cable Weight | 38 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| NEC / UL Compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
