Brand: Belden
|
SKU:
1233770
Belden 1049A 0107500 | Power Limited Tray Cable, 4 Pairs, 18 Awg, 7X26 Strands, 600V, Bare Copper, PVC Jacket
Regular price
$3,944.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1049A 0107500 | Power Limited Tray Cable, 4 Pairs, 18 Awg, 7...
Regular price
$3,944.04
Unit price
Description
Description
Belden 1049A 0107500 | Power Limited Tray Cable, 4 Pairs, 18 Awg, 7X26 Strands, 600V, Bare Copper, PVC Jacket

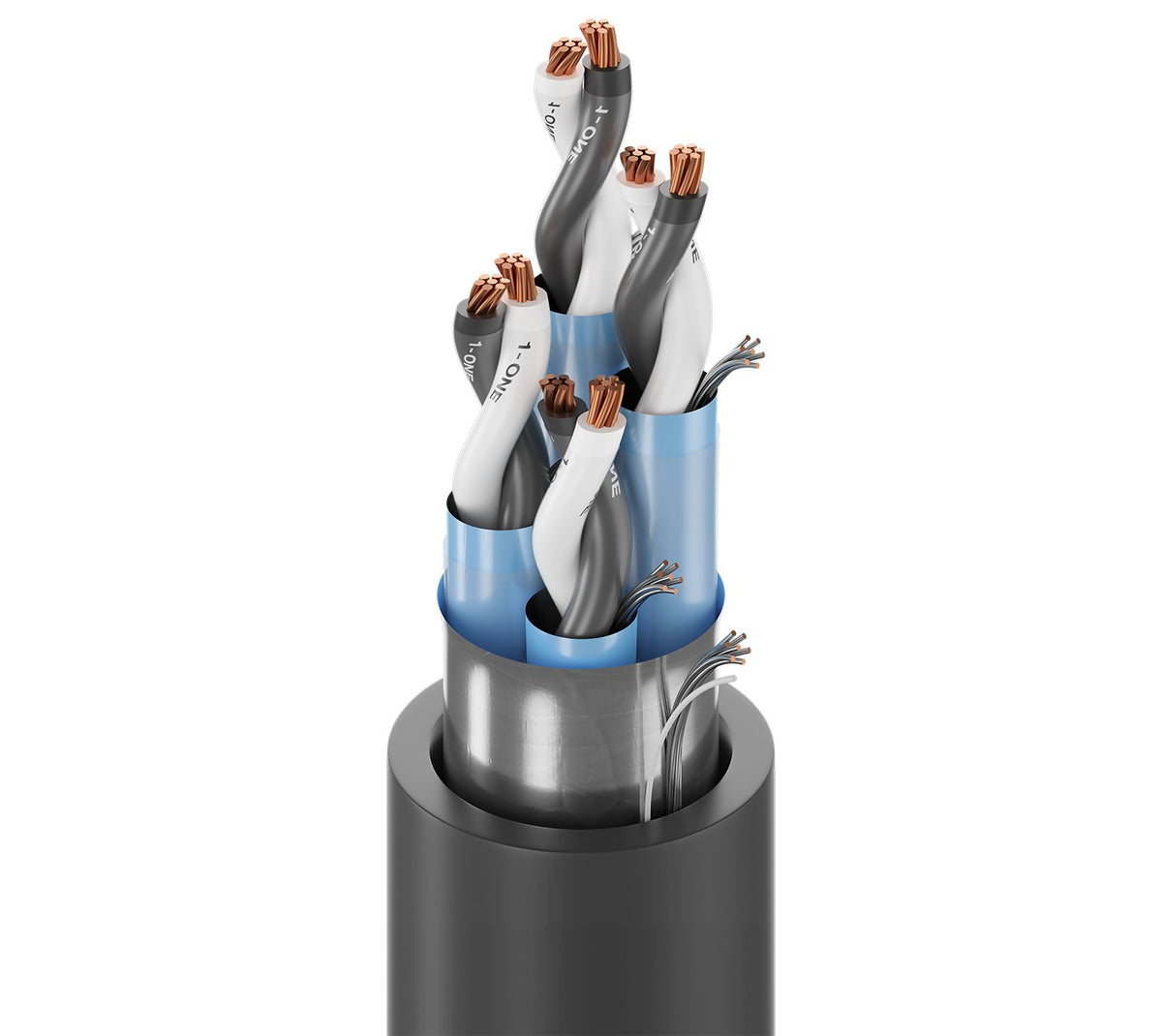

18 AWG pairs stranded (7x26) bare copper conductors, twisted pairs, PVC/Nylon insulation, individually shielded plus an overall Beldfoil shield (100% coverage), PVC jacket.
Specifications
Specifications
Belden - 1049A 0107500 - Applications
- Industrial Control
- Raceways Cable trays and ducts
- Digital Control
- Instruments (4-20ma - 0-10v)
- Low voltage digital control (24v)
- Encoders
- Control Circuits
- Distributed control system (DCS)
- Programmable logic controller (PLC)
- Solenoids
- Valves
- Actuators
- Positioners
Belden - 1049A 0107500 - Specifications
| Armor | No |
|---|---|
| Conductor Count | 4 Pair |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Insulation Material | VN-Vinyl Nylon |
| Jacketing Material | PVC-Polyvinyl Chloride |
| Screen/Shield Type | Both Individual And Overall Shields |
| Screen/Shield | Yes - This Has A Shield |
| Thermocouple | No |
| UNSPSC Code | 26121642 |
| Color | Black |
| Stranding | 7x26 |
| Material | BC - Bare Copper |
| UL Temperature | 90°C Dry, 90°C Wet |
| Operating Temperature | -30°C to 90°C Dry/Wet |
| Stationary Min. | 5.9 in (150 mm) |
| Installation Min. | 5.9 in (150 mm) |
| Bulk Cable Weight | 122 lbs/1000ft |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| Putup Type | Reel |
| Length | 7,500 ft |
| UPC | 612825105374 |
