Brand: Belden
|
SKU:
2AS-1636POS-B
Belden 1089A 0101250 | Inst, 36 Pr #16 Str BC, PVC-NYL Ins E1, OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry 75C Wet
Regular price
$34.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1089A 0101250 | Inst, 36 Pr #16 Str BC, PVC-NYL Ins E1, OS, ...
Regular price
$34.02
Unit price
Description
Description

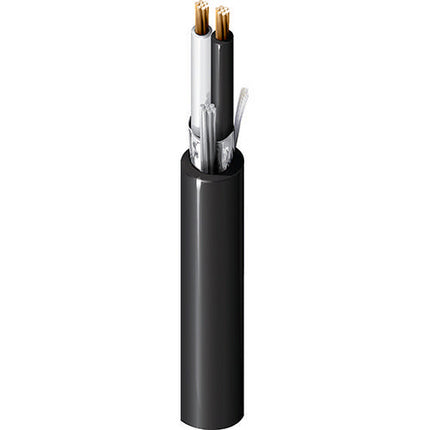

UL Instrumentation, 36 Pair 16AWG (7x26) Bare Copper, PVC-NYL Insulation E1 Color Code, Overall Beldfoil Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry 75C Wet SUN RES DIR BUR
Specifications
Specifications
Product Overview
| Suitable Applications | Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners |
|---|
Mechanical Characteristics
| Max. Pull Tension | 2606 lbs |
|---|---|
| Bulk Cable Weight | 1020 lbs/1000ft |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
| Flammability / Fire Resistance | UL1685 (FT4 Loading), FT4, 1202 |
| NEC / UL Compliance | Article 336, Article 760, NPLF, TC-ER |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | ICEA S-73-532, S-61-402 |
