Brand: Belden
|
SKU:
696386
Belden 10GX62F 0091000 | 10GX Category 6A Enhanced Cable, 4 Bonded-Pairs, F/UTP, CMR
Regular price
$2.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 10GX62F 0091000 | 10GX Category 6A Enhanced Cable, 4 Bonded-...
Regular price
$2.65
Unit price
Description
Description

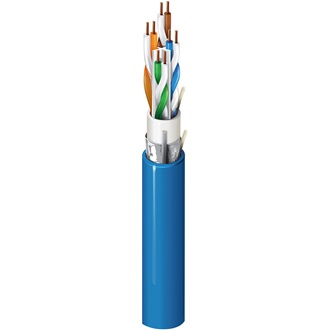

Belden 10GX62F 0091000 | 10GX Category 6A Enhanced Cable, 4 Bonded-Pairs, F/UTP, CMR
10GX Category 6A Enhanced Premise Horizontal Cable (625MHz), 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR, PVC Jacket.
Specifications
Specifications
Belden - 10GX62F 0091000 - Specifications
| Size | 23 AWG |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| No. of Pairs | 4 |
| UL Temperature | 75°C |
| Installation | 0°C To +50°C |
| Storage | -20°C To +75°C |
| Stationary Min. | 1.2 in (30 mm) |
| Installation Min. | 3.0 in (76 mm) |
| Max. Pull Tension | 40 lbs (18 kg) |
| Bulk Cable Weight | 39 lbs/1000ft |
| Environmental Suitability | Riser, Indoor |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | UL 1666 Riser, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMR |
| ICEA Compliance | S-116-732 |
| IEEE Compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| Data Category | Category 6A |
| TIA/EIA Compliance | ANSI/TIA-568.2-D Category 6A |
| ISO/IEC Compliance | ISO/IEC 11801-1, IEC 61156-5 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 10GX63F |
| UNSPC Code | 43231506 |
