Brand: Belden
|
SKU:
B1115A

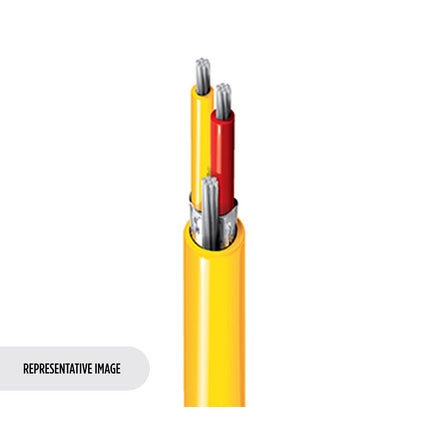

Belden 1115A 0105000 | Type JX Thermocouple, 1 Pr #16 Sol, FEP Ins Wht, Red, OS, Blk FEP Jkt, 300V PLTC CL2P 200C SUN RES
Regular price
$6.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1115A 0105000 | Type JX Thermocouple, 1 Pr #16 Sol, FEP Ins ...
Regular price
$6.83
Unit price
Description
Description
Type JX Thermocouple, 1 Pair 16AWG (Solid) Iron+Constantan, FEP Insulation Wht, Red Color Code, Overall Beldfoil Shield, Black FEP Outer Jacket, PLTC CL2P 200C SUN RES
Specifications
Specifications
Product Overview
| Suitable Applications | Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),Thermocouple, distributed control system (DCS),programmable logic controller (PLC) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 83 lbs |
|---|---|
| Bulk Cable Weight | 30 lbs/1000ft |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance |
|---|---|
| Flammability / Fire Resistance | NFPA 262, UL 910 (Plenum), T-29-520 |
| NEC / UL Compliance | Article 725, CL3P, PLTC |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | ISA MC 96.1-1982 Type JX |
