Brand: Belden
|
SKU:
B1307A-0-1000
Belden 1307A 0101000 | Speaker Cable, 16 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Regular price
$729.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1307A 0101000 | Speaker Cable, 16 AWG, Stranded, 2, Bare Cop...
Regular price
$729.33
Unit price
Brand: Belden
|
SKU:
B1307A-0-1000
Regular price
$729.33
Unit price
Shipping calculated at checkout.
Description
Description

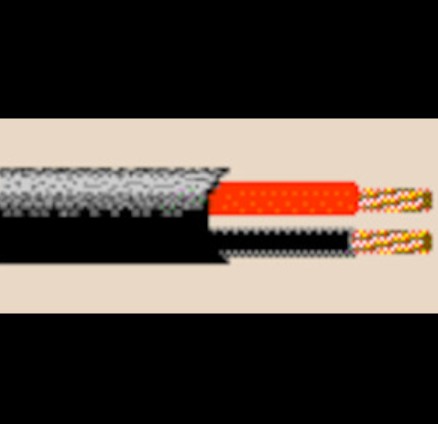

Belden 1307A 0101000 | Speaker Cable, 16 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Speaker Cable; 16 AWG; Stranded; 2 Conductor; Bare Copper; 1000 ft. Length; 65x34 Str; Black PVC Jacket; PE Insulation; CM; 300 V; Black, Red; Unshielded; -20 to +75 C; 0.21 in. Nominal Outside Diameter; 0.022 in. Thickness
Specifications
Specifications
Belden - 1307A 0101000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Speaker Cable
Belden - 1307A 0101000 - Applications
- Speaker Cable; Direct Burial; Indoor/Outdoor Home Theater; In-Wall Speaker; Outdoor Speaker
Belden - 1307A 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 1307A 0101000 |
| Item Description | Speaker Cable, 16 AWG, Stranded, 2, Bare Copper, 1000 ft. L |
| Amperage | 18 A |
| Approval Listings | Ul-1666, Cul-Listed, Iec-60332-1-2, Nec/Ul-Article 725, 800, Cec/Cul-Cm, Eca Approved |
| Bend Radius | 2.1 In. |
| Csa | Ft4 Vertical Flame Test - Cables In Cable Trays |
| Capacitance | 19.9 Pf/Ft. |
| Conductor Count | 2 Conductor |
| Conductor Material | Bare Copper |
| Conductor Size | 16 Awg |
| Conductor Stranding | 65 Strands Per Conductor |
| Conductor Type | Stranded |
| Inductance | 0.16 ?h/Ft. |
| Insulation Color | Black, Red |
| Insulation Material | Po-Polyolefin |
| Jacket Color | Black |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cl3, Cm |
| Length | 1000 Ft. |
| Nominal O.D. | 0.21 In. |
| Package Type | Crate Reel Put-Up |
| Plenum | Riser |
| Product Type | Flexible Direct Burial Speaker Cable |
| Pulling Force | 65 Lbs. |
| Resistance | 4.27 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | No |
| Shield Type | Unshielded |
| Shielding | Unshielded |
| Temperature Rating | -20 To +75 C |
| Thickness | 0.022 In. |
| Type | Speaker Cable |
| Voltage | 300 V |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor, Outdoor, Burial |
