Brand: Belden
|
SKU:
B1309A-0-1000

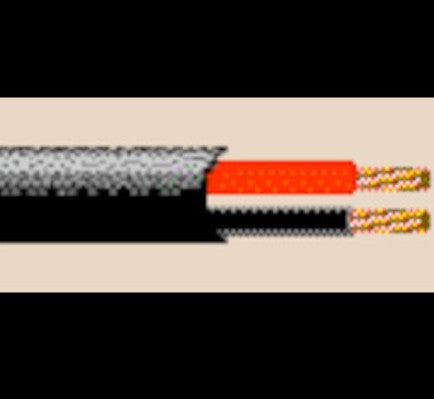

Belden 1309A 0101000 | Speaker Cable, 14 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Regular price
$1,362.20
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1309A 0101000 | Speaker Cable, 14 AWG, Stranded, 2, Bare Cop...
Regular price
$1,362.20
Unit price
Brand: Belden
|
SKU:
B1309A-0-1000
Regular price
$1,362.20
Unit price
Shipping calculated at checkout.
Description
Description
Belden 1309A 0101000 | Speaker Cable, 14 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Speaker Cable; 14 AWG; Stranded; 2 Conductor; Bare Copper; 1000 ft. Length; 105x34 Str; Black PVC Jacket; PE Insulation; CM; 300 V; Black, Red; Unshielded; -20 to +75 C; 0.264 in. Nominal Outside Diameter; 104 lb.; 2.6 in.
Specifications
Specifications
Belden - 1309A 0101000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Speaker Cable
Belden - 1309A 0101000 - Applications
- Speaker Cable; Direct Burial; Indoor/Outdoor Home Theater; In-Wall Speaker; Outdoor Speaker
Belden - 1309A 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 1309A 0101000 |
| Item Description | Speaker Cable, 14 AWG, Stranded, 2, Bare Copper, 1000 ft. L |
| Amperage | 25 A |
| Approval Listings | Ul-1666, Cul-Listed, Iec-60332-1-2, Nec/Ul-Article 725, 800, Cec/Cul-Cm, Eca Approved |
| Bend Radius | 2.6 In. |
| Capacitance | 20.5 Pf/Ft. |
| Color Code | Black |
| Color | Insulation - Black, Red |
| Cond. Type | Stranded Conductor |
| Conductor Count | 2 Conductor |
| Conductor Gauge (Awg) | 14 Awg |
| Conductor Material | Bare Copper |
| Conductor Size | 14 Awg |
| Conductor Stranding | 105X34 Str |
| Conductor Strands | 105X34 Str |
| Conductor Type | Stranded |
| Inductance | 0.16 µh/Ft. |
| Insulation Material | Po-Polyolefin |
| Insulation | Polyethylene |
| Jacket Color | Black |
| Jacket Material | Pvc |
| Jacket Rating | Cl3, Cm |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Length - Feet | 1000 Ft. |
| Length | 1000 Ft. |
| Material | Bare Copper |
| Nec Rating | Ul Listed Art 800 Riser |
| Nominal Od | 0.264 In. |
| Package | Crate Reel Put-Up |
| Plenum | Riser |
| Product Type | Flexible Direct Burial Speaker Cable |
| Pulling Force | 104 Lb. |
| Resistance | 2.67 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | No |
| Shield Type | Unshielded |
| Shielding | Unshielded |
| Temperature Rating | -20 To +75 C |
| Thickness | 0.027 In. |
| Type | Speaker Cable |
| Voltage | 300 Vac |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor, Outdoor, Burial |
