Brand: Belden
|
SKU:
B1422A-1000
Belden 1422A 0601000 | Multi-Conductor - Low Capacitance Computer Cable For Eia Rs-232/422 5-Pair 24 Awg Fhdpe Fs PVC Chrome
Regular price
$6.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1422A 0601000 | Multi-Conductor - Low Capacitance Computer C...
Regular price
$6.29
Unit price
Description
Description
Belden 1422A 0601000 | Multi-Conductor - Low Capacitance Computer Cable For Eia Rs-232/422 5-Pair 24 Awg Fhdpe Fs PVC Chrome

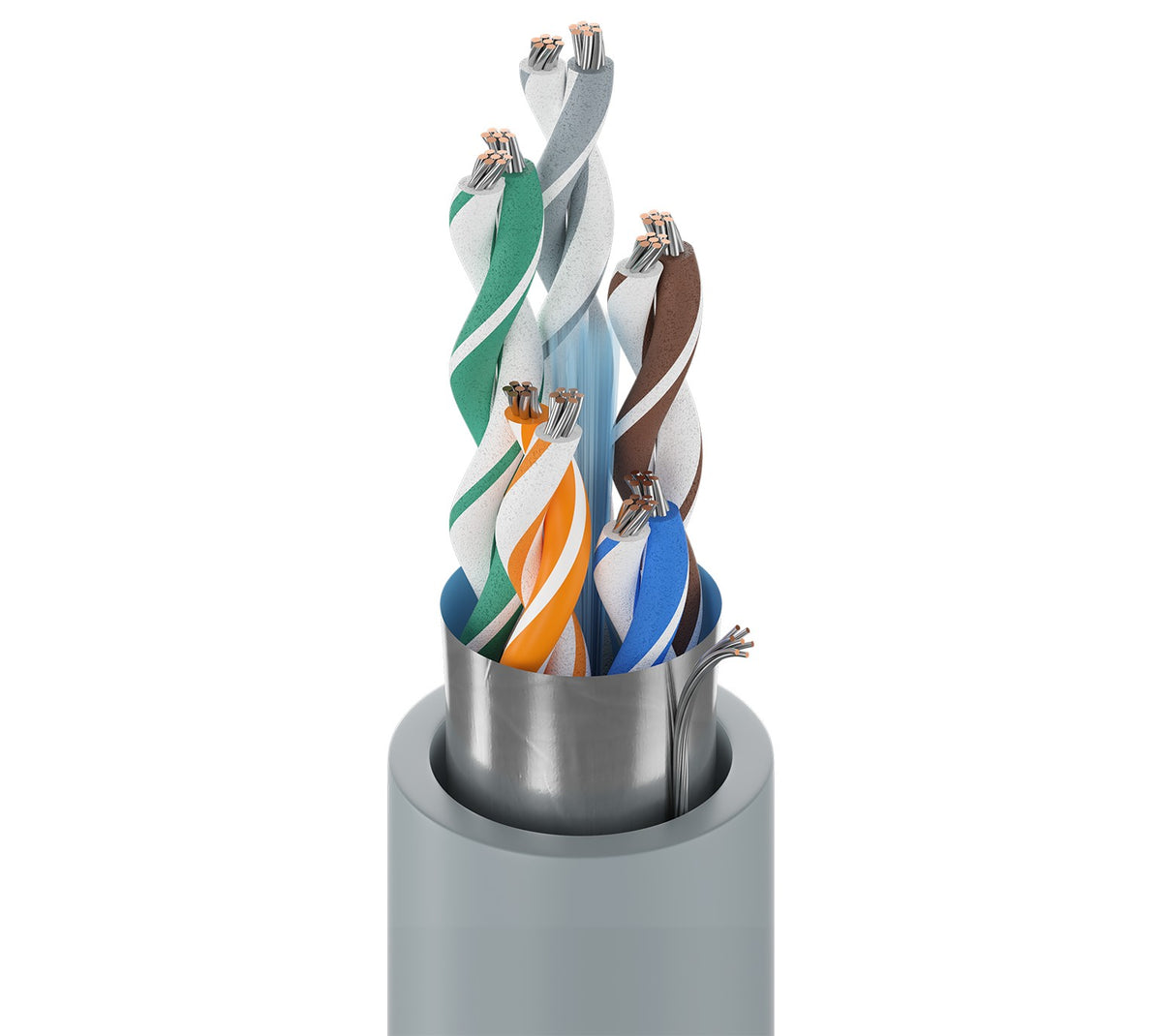

24 AWG stranded (7x32) TC conductors, Datalene insulation, twisted pairs, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain wire, PVC jacket.
Specifications
Specifications
Belden - 1422A 0601000 - Applications
- Rs-232 Extended Distance Applications
- Rs-423 Applications
- Computer Communications
- Low Voltage Analog Signals (4-20Ma; 0-10V)
- Low Voltage Digital Control (24V)
- Line Level Audio
- Panel Wiring
Belden - 1422A 0601000 - Specifications
| Conductor Count | 5 Pairs |
|---|---|
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | Fpe-Foamed Polyethylene |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPSC Code | 26121613 |
| Stranding | 7x32 |
| Stationary Min. | 2.9 in (74 mm) |
| Installation Min. | 2.9 in (74 mm) |
| Color | Chrome |
