Brand: Belden
|
SKU:
B1424A-DY0

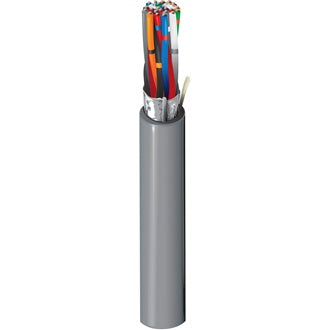

Belden 1424A 0601000 | Computer EIA RS-232/422 Cable, #24-12.5 Pair, FPE, O/A Foil, PVC Jacket, CM, 100?
Regular price
$9.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1424A 0601000 | Computer EIA RS-232/422 Cable, #24-12.5 Pair...
Regular price
$9.27
Unit price
Description
Description
Belden 1424A 0601000 | Computer EIA RS-232/422 Cable, #24-12.5 Pair, FPE, O/A Foil, PVC Jacket, CM, 100?
Computer EIA RS-232/422 Cable, 12.5-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Specifications
Specifications
Belden - 1424A 0601000 - Specifications
| Element | Pair(s),Conductor(s) |
|---|---|
| Stranding | 7x32,7x32 |
| UL Temperature | 80°C |
| Stationary Min. | 2.9 in (74 mm) |
| Installation Min. | 2.9 in (74 mm) |
| Max. Pull Tension | 138 lbs (62.6 kg) |
| Bulk Cable Weight | 76 lbs/1000ft |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2919 |
| CEC / C(UL) Compliance | CM |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Count | 12 Pairs + 1 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | FPE-Foamed Polyethylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
