Brand: Belden
|
SKU:
323-231-1804-B-MT

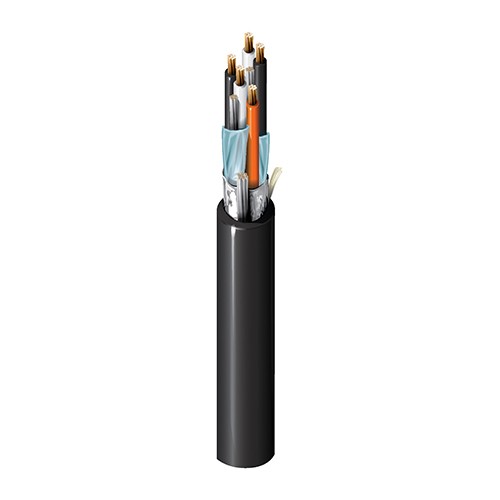

Belden 1475A 0107500 | Inst, 4 Pr #18+22 Stranded BC, PVC Ins E1, IS/OS, Black PVC Jacket, 300V PLTC ITC CMG
Regular price
$18.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1475A 0107500 | Inst, 4 Pr #18+22 Stranded BC, PVC Ins E1, I...
Regular price
$18.45
Unit price
Brand: Belden
|
SKU:
323-231-1804-B-MT
Regular price
$18.45
Unit price
Shipping calculated at checkout.
Description
Description
Belden 1475A 0107500 | Inst, 4 Pr #18+22 Stranded BC, PVC Ins E1, IS/OS, Black PVC Jacket, 300V PLTC ITC CMG
Specifications
Specifications
Belden - 1475A 0107500 - Applications
- Industrial Control
- Raceways Cable Trays And Ducts
- Digital Control
- Instruments (4-20Ma; 0-10V)
- Low Voltage Digital Control (24V)
- Encoders
- Control Circuits
- Distributed Control System (Dcs)
- Programmable Logic Controller (Plc)
Belden - 1475A 0107500 - Specifications
| No. of Elements | 4 |
|---|---|
| Size | 18 AWG,22 AWG |
| Stranding | 7x26,7x30 |
| UL Temperature | 105°C |
| Operating Temperature | -30°C to +105°C |
| Stationary Min. | 5.9 in (150 mm) |
| Installation Min. | 5.9 in (150 mm) |
| Bulk Cable Weight | 118 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, T-29-520, IEEE 1202 FT4 |
| AWM Compliance | AWM 2464 |
