Description
Description

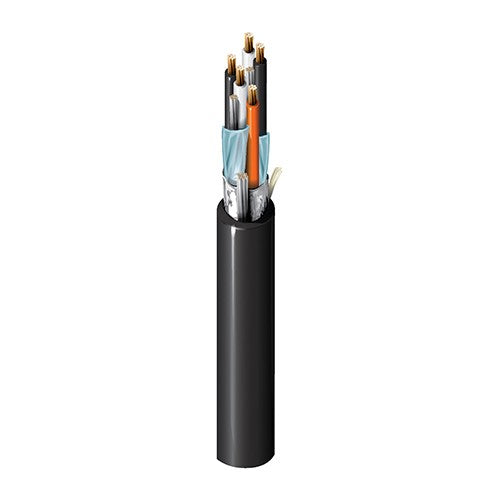

Belden 1492A 0107500 | Power Limited Tray Cable, 2 Pairs, 16 Awg, 7X24 Strands, 300V, Bare Copper, PVC Jacket
16 AWG pairs stranded (7x24) bare copper conductors, twisted pairs, individually shielded plus an overall Beldfoil shield (100% coverage), PVC insulation, PVC jacket.
Specifications
Specifications
Belden - 1492A 0107500 - Applications
- Industrial Control
- Raceways Cable Trays And Ducts
- Digital Control
- Instruments (4-20Ma; 0-10V)
- Low Voltage Digital Control (24V)
- Encoders
- Control Circuits
- Distributed Control System (Dcs)
- Programmable Logic Controller (Plc)
Belden - 1492A 0107500 - Specifications
| Armor | No |
|---|---|
| Conductor Count | 2 Pair |
| Conductor Size | 16 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Screen/Shield Type | Both Individual And Overall Shields |
| Screen/Shield | Yes - This Has A Shield |
| Thermocouple | No |
| UNSPSC Code | 26121642 |
| Stranding | 7x24,7x30 |
| UL Temperature | 105°C |
| Operating Temperature | -30°C to +105°C |
| Stationary Min. | 5.7 in (140 mm) |
| Installation Min. | 5.7 in (140 mm) |
| Bulk Cable Weight | 115 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| AWM Compliance | AWM 2464 |
| Color | Black |
| Length | 7,500 ft |
| UPC | 612825115656 |
