Brand: Belden
|
SKU:
323-231-1608-B-PR

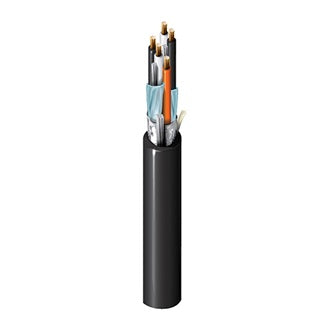

Belden 1494A 0105000 | Instrumentation 8 Pair #16+22 Stranded Bare Copper, PVC Insulation E1, IS/OS, Black PVC Jacket
Regular price
$14.22
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1494A 0105000 | Instrumentation 8 Pair #16+22 Stranded Bare ...
Regular price
$14.22
Unit price
Brand: Belden
|
SKU:
323-231-1608-B-PR
Regular price
$14.22
Unit price
Shipping calculated at checkout.
Description
Description
Belden 1494A 0105000 | Instrumentation 8 Pair #16+22 Stranded Bare Copper, PVC Insulation E1, IS/OS, Black PVC Jacket
UL Instrumentation, 8 Pair 16+22AWG (7x24+7x30) Bare Copper, PVC Insulation E1 Color Code, Individual & Overall Beldfoil® Shield, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES.
Specifications
Specifications
Belden - 1494A 0105000 - Specifications
| Element | Pair(s),Comm Wire(s) |
|---|---|
| No. of Elements | 8,1 |
| Stranding | 7x24,7x30 |
| UL Temperature | 105°C |
| Stationary Min. | 7.0 in (180 mm) |
| Installation Min. | 7.0 in (180 mm) |
| Max. Pull Tension | 795 lbs (361 kg) |
| Bulk Cable Weight | 307 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / Reaction to Fire | UL 1685 UL Loading, FT4, IEEE 1202 |
| NEC / UL Compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Armor | No |
| Conductor Size | 16 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacketing Material | PVC-Polyvinyl Chloride |
| Screen/Shield Type | Both Individual And Overall Shields |
| Screen/Shield | Yes - This Has A Shield |
| Thermocouple | No |
| UNSPC Code | 26121642 |
