Brand: Belden
|
SKU:
323-231-1612-B-MT

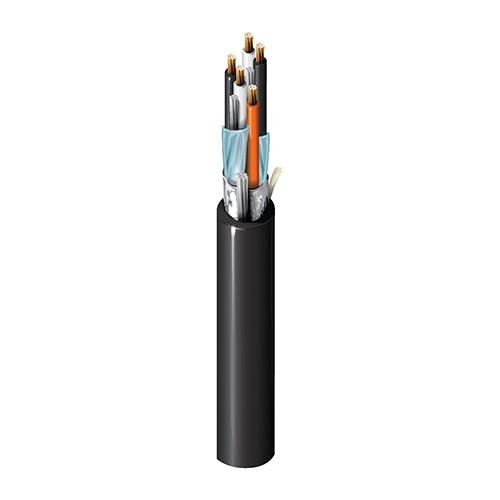

Belden 1495A | Inst, 12 Pr #16+22 Stranded BC, PVC Ins E1, IS/OS, Black PVC Jacket, 300V PLTC ITC CMG
Regular price
$26.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1495A | Inst, 12 Pr #16+22 Stranded BC, PVC Ins E1, IS/OS, B...
Regular price
$26.91
Unit price
Brand: Belden
|
SKU:
323-231-1612-B-MT
Regular price
$26.91
Unit price
Shipping calculated at checkout.
Description
Description
Belden 1495A | Inst, 12 Pr #16+22 Stranded BC, PVC Ins E1, IS/OS, Black PVC Jacket, 300V PLTC ITC CMG
Specifications
Specifications
Belden - 1495A - Applications
- Industrial Control
- Raceways Cable Trays And Ducts
- Digital Control
- Instruments (4-20Ma; 0-10V)
- Low Voltage Digital Control (24V)
- Encoders
- Control Circuits
- Distributed Control System (Dcs)
- Programmable Logic Controller (Plc)
Belden - 1495A - Specifications
| No. of Elements | 12 |
|---|---|
| Size | 16 AWG,22 AWG |
| Stranding | 7x24,7x30 |
| UL Temperature | 105°C |
| Operating Temperature | -30°C to +105°C |
| Stationary Min. | 8.4 in (210 mm) |
| Installation Min. | 8.4 in (210 mm) |
| Bulk Cable Weight | 447 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / Reaction to Fire | UL1685 (FT4 Loading), FT4, 1202 |
| AWM Compliance | AWM 2464 |
| Color | Black |
| Length | 2,500 ft |
| UPC | 612825115687 |
