Brand: Belden
|
SKU:
B1503A-94
Belden 1503A | Line Level Audio Cable, 1 Pair #22 Stranded TC, O/A Foil, PVC Jacket, CMR
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1503A | Line Level Audio Cable, 1 Pair #22 Stranded TC, O/A ...
Regular price
$1.47
Unit price
Description
Description
Belden 1503A | Line Level Audio Cable, 1 Pair #22 Stranded TC, O/A Foil, PVC Jacket, CMR

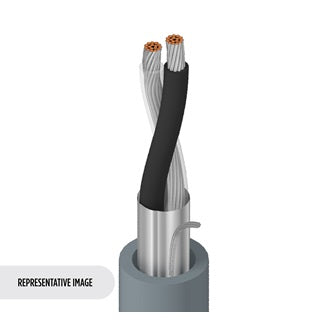

Line Level Audio Cable, 1 Pair 22 AWG (7 x 30) Tinned Copper, PVC Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR.
Specifications
Specifications
Belden - 1503A - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | 7x30 |
| UL Temperature | 60°C |
| Stationary Min. | 1.4 in (36 mm) |
| Installation Min. | 1.4 in (36 mm) |
| Max. Pull Tension | 23.7 lbs (10.8 kg) |
| Bulk Cable Weight | 14 lbs/1000ft |
| Environmental Suitability | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire | UL 1666 Riser, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
