Brand: Belden
|
SKU:
323-221-1803-B-PR

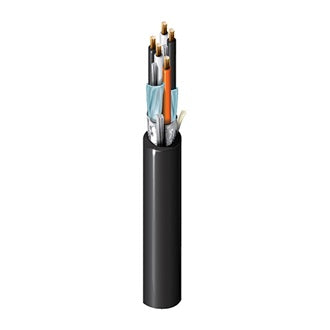

Belden 1529A 0107500 | Instrumentation 3 Pair #18+1c #22 Stranded Bare Copper, PVC Insulation E1, OS, Black PVC Jacket
Regular price
$4.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1529A 0107500 | Instrumentation 3 Pair #18+1c #22 Stranded B...
Regular price
$4.44
Unit price
Brand: Belden
|
SKU:
323-221-1803-B-PR
Regular price
$4.44
Unit price
Shipping calculated at checkout.
Description
Description
Belden 1529A 0107500 | Instrumentation 3 Pair #18+1c #22 Stranded Bare Copper, PVC Insulation E1, OS, Black PVC Jacket
UL Instrumentation, 3 Pair 18+22AWG (7x26+7x30) Bare Copper, PVC Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES.
Specifications
Specifications
Belden - 1529A 0107500 - Specifications
| Element | Pair(s),Comm Wire(s) |
|---|---|
| No. of Elements | 3,1 |
| Stranding | 7x26,7x30 |
| UL Temperature | 105°C |
| Stationary Min. | 4.4 in (110 mm) |
| Installation Min. | 4.4 in (110 mm) |
| Max. Pull Tension | 157 lbs (71.2 kg) |
| Bulk Cable Weight | 94 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / Reaction to Fire | UL 1685 UL Loading, FT4, IEEE 1202 |
| NEC / UL Compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Armor | No |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacketing Material | PVC-Polyvinyl Chloride |
| Screen/Shield Type | Overall Aluminum Mylar Foil Shield |
| Screen/Shield | Yes - This Has A Shield |
| Thermocouple | No |
| UNSPC Code | 26121642 |
