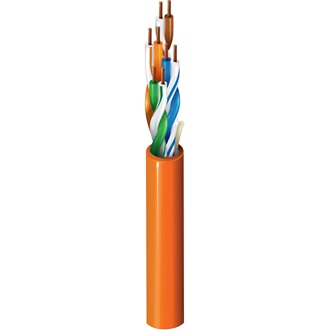

Belden 1592A 0061000 | Category 5e Patch Cable, 4 Pair, U/UTP, CM
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B1592A-PR
Regular price
$1.46
Unit price
Description
Description
Belden 1592A 0061000 | Category 5e Patch Cable, 4 Pair, U/UTP, CM
Category 5e Premise Patch Cable (200MHz), 4 Pair, 24 AWG Stranded (7x32) Bare Copper Conductors, U/UTP, CM, PVC Jacket.
Specifications
Specifications
Belden - 1592A 0061000 - Specifications
| Size | 24 AWG |
|---|---|
| Stranding | 7x32 |
| Material | BC - Bare Copper |
| No. of Pairs | 4 |
| UL Temperature | 75°C |
| Installation | 0°C To +50°C |
| Storage | -20°C To +75°C |
| Stationary Min. | 1.0 in (25 mm) |
| Installation Min. | 2.25 in (57.2 mm) |
| Max. Pull Tension | 25 lbs (11 kg) |
| Bulk Cable Weight | 22 lbs/1000ft |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | UL 1685 (UL Loading-Limited Smoke) |
| NEC / UL Compliance | Article 800, CM |
| CEC / C(UL) Compliance | CM |
| ICEA Compliance | S-90-661 |
| IEEE Compliance | IEEE 802.3bt Type 1, Type 2, Type 3 |
| NEMA Compliance | NEMA WC-63.1 |
| Data Category | Category 5e |
| TIA/EIA Compliance | ANSI/TIA-568.2-D Category 5e |
| Third Party Performance Verification | Category 5e Patch |
| ISO/IEC Compliance | ISO/IEC 11801-1, IEC 61156-6 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Category | Category 5E |
| Color | Blue |
| Connector Type | Rj45 To Rj45 |
| Lengths | 1000 Ft. | 304.8 M |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPC Code | 43223303 |
