Brand: Belden
|
SKU:
B1694A

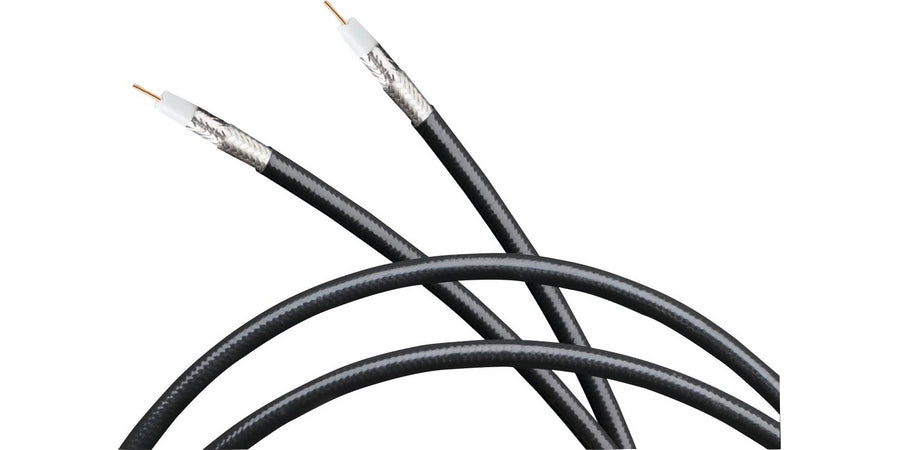

Belden 1694A 0105000 | Coaxial Cable, RG6, 18 AWG, Solid, Bare Copper, 5000 ft. L
Regular price
$1,344.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1694A 0105000 | Coaxial Cable, RG6, 18 AWG, Solid, Bare Copp...
Regular price
$1,344.93
Unit price
Description
Description
Belden 1694A 0105000 | Coaxial Cable, RG6, 18 AWG, Solid, Bare Copper, 5000 ft. L
Coaxial Cable; RG6; 18 AWG; Solid; Bare Copper; 5000 ft. Length; Black PVC Jacket; 4500 to 6000MHz; PE Insulation; CMR; 300 V; Braid; Tri-Laminate, Tinned Copper Shield; -30 to +75 C; 0.274 in. Nominal Outside Diameter; 75 Ohm
Specifications
Specifications
Belden - 1694A 0105000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 1694A 0105000 - Applications
- Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p
Belden - 1694A 0105000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 1694A 0105000 |
| Item Description | Coaxial Cable, RG6, 18 AWG, Solid, Bare Copper, 5000 ft. L |
| Approx. Wt. Lbs./1,000 Ft. | 45 |
| Bend Radius | 2-3/4 In. |
| Braid % | 95% Braid Coverage |
| Braid Material | Tinned Copper |
| Csa | Ft4 Vertical Flame Test - Cables In Cable Trays |
| Cable/Wire Type | Rg6 |
| Capacitance | 16.2 Pf/Ft. |
| Conductor Count | 1 Conductor |
| Conductor Diameter | 0.04 In. |
| Conductor Material | Bare Copper |
| Conductor Size | 18 Awg |
| Conductor Type | Solid |
| Dielectric Material | Mixed Material Composites |
| Dielectric Type/Jkt. | Fhdpe/Pvc |
| Flooded | No, Not Flooded Over Braid |
| Frequency Rating | 4500 To 6000Mhz |
| Impedance | 75 Ohm |
| Insulation Diameter | 0.18 In. |
| Insulation Material | Fhdpe-Foamed High-Density Polyethylene |
| Jacket Color | Black |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cmr, Cmg |
| Length | 5000 Ft. |
| Major Market | Video |
| Manufacturer Listed Application | Digital Video, 6 Gb/S Uhdtv, Hd-Sdi 1080P |
| Nec Rating | Cmr |
| Nom. O.D. (In.) | 0.275 |
| Nominal O.D. | 6.96 Mm |
| Notes/Special Features | + Colors Sdi/Hdtv |
| Package Type | Crate Reel, Final |
| Plenum | Riser |
| Product Type | Coaxial Cable |
| Pulling Force | 69 Lbs. |
| Rg Type | Rg-6 |
| Rating | Cmr |
| Resistance | 6.4 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Shield Coverage | Foil + 95% Tc Braid |
| Shield Material | 100% Aluminum Polyester, 95% Tinned Copper Braid |
| Shield Type | Other Shield |
| Spec/Stnd Nec | Ul Listed Art 800 Riser |
| Temperature Rating - Max | 75 Deg C |
| Temperature Rating | -30 To 75 Deg C |
| Voltage | 300 V |
| Weight Lbs./1,000 Ft. | 45 |
| Wire Size | 18 Awg Solid Bc |
| Environmental Suitability | Indoor/Outdoor, Indoor, UV Resistance, Aerial - Black only, When supported by messenger wire |
