Brand: Belden
|
SKU:
B1694ABHD3

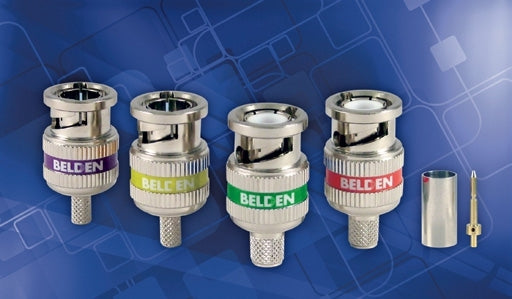

Belden 1694ABHD3 | Connector, BNC, 3-Piece, Straight Plug, Green, RG6, 75 Ohm, PC
Regular price
$3.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 1694ABHD3 | Connector, BNC, 3-Piece, Straight Plug, Green, R...
Regular price
$3.85
Unit price
Description
Description
Belden 1694ABHD3 | Connector, BNC, 3-Piece, Straight Plug, Green, RG6, 75 Ohm, PC
Connector; BNC; 3-Piece, Straight Plug; Green; RG6; 75 Ohm; 500 V; 6GHz; Brass; Brass Contact; 5000 mOhm; Cable; 5000 mOhm; 7 dB; Crimp; -40 to +140 F; PC; For Use With 1694A Coaxial Cables
Specifications
Specifications
Belden - 1694ABHD3 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial Hardware
- Coaxial Connectors
Belden - 1694ABHD3 - Applications
- HD-SDI, Video, Digital Video, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P
Belden - 1694ABHD3 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 1694ABHD3 |
| Item Description | Connector, BNC, 3-Piece, Straight Plug, Green, RG6, 75 Ohm, PC |
| Body Finish | Pc |
| Cable Size | Rg-6 |
| Coax Type | Rg-6 |
| Color | Green |
| Configuration | Bnc |
| Connector Type | Bnc (Male) |
| Contact Material | Brass |
| Contact Plating | Gold Plated |
| Finish | Nickel-Plated |
| For Use With | Belden 1694A Coaxial Cables, Bb3Phct Crimp Tool |
| Frequency Band | 6Ghz |
| Frequency Rating | 6Ghz |
| Impedance | 75 Ohm |
| Installation | Crimp |
| Material | Brass |
| Mounting Type | Cable |
| Package Quantity | 50 |
| Product Type | 3-Piece Straight Coaxial Connector |
| Resistance | 5000 Mohm |
| Return Loss | 7 Db |
| Rohs Compliant | Yes |
| Suitable For Use With | 1694A Coaxial Cables |
| Temperature Rating | -40 To +140 F |
| Termination | Crimp |
| Type | Bnc 75 Ohm |
| Voltage | 500 V |
