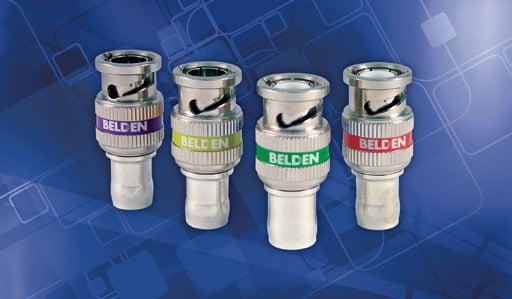

Belden 1695ABHD1 | Connector, BNC, 3-Piece, Straight Plug, Green, RG6 Plenum
Connector; BNC; 3-Piece, Straight Plug; Green; RG6 Plenum; 75 Ohm; 500 V; 6GHz; Brass; Brass Contact; 5000 mOhm; Cable; 5000 mOhm; 7 dB; Compression; -40 to +140 F; PC; For Use With 1695A Coaxial Cables
Specifications
Specifications
Belden - 1695ABHD1 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial Hardware
- Coaxial Connectors
Belden - 1695ABHD1 - Applications
- HD-SDI, Video, Digital Video, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P
Belden - 1695ABHD1 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 1695ABHD1 |
| Item Description | Connector, BNC, 3-Piece, Straight Plug, Green, RG6 Plenum |
| Body Finish | Pc |
| Cable Size | Rg-6 Plenum |
| Coax Type | Rg-6 |
| Color | Green |
| Connector Type | Bnc (Male) |
| Contact Material | Brass |
| Contact Plating | Gold Plated |
| Finish | Nickel-Plated |
| For Use With | Cplcrbc-Br Compression Tool, Psa59/6 Strip Tool, Belden 1695A Coaxial Cables |
| Frequency Band | 6Ghz |
| Frequency Rating | 6Ghz |
| Impedance | 75 Ohm |
| Material | Brass |
| Mounting Type | Cable |
| Product Type | 1-Piece Straight Coaxial Connector |
| Resistance | 5000 M ohm |
| Return Loss | 7 Db |
| Rohs Compliant | Yes |
| Suitable For Use With | 1695A Coaxial Cables |
| Temperature Rating | -40 To +140 F |
| Termination | Compression |
| Type | Bnc 75 Ohm |
| Voltage | 500 V |
