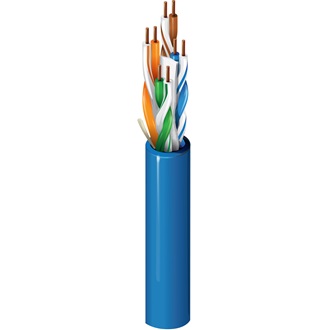

Belden 2413 004A1000 | Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMP
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
781590
Regular price
$1.46
Unit price
Description
Description
Belden 2413 004A1000 | Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMP
Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket.
Specifications
Specifications
Belden - 2413 004A1000 - Specifications
| Size | 23 AWG |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| No. of Pairs | 4 |
| UL Temperature | 90°C |
| Installation | 0°C To +50°C |
| Storage | -20°C To +75°C |
| Stationary Min. | 1.0 in (25 mm) |
| Installation Min. | 2.25 in (57.2 mm) |
| Max. Pull Tension | 25 lbs (11 kg) |
| Bulk Cable Weight | 26 lbs/1000ft |
| Environmental Suitability | Plenum, Indoor |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CMP, CMP-LP (0.5A), CL3P-LP (0.5A) |
| CEC / C(UL) Compliance | CMP |
| ICEA Compliance | S-116-732 |
| IEEE Compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| Data Category | Category 6 |
| TIA/EIA Compliance | ANSI/TIA-568.2-D Category 6 |
| Third Party Performance Verification | Category 6 |
| ISO/IEC Compliance | ISO/IEC 11801-1, IEC 61156-5 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 2412 |
| UNSPC Code | 43231506 |
