Brand: Belden
|
SKU:
10160164

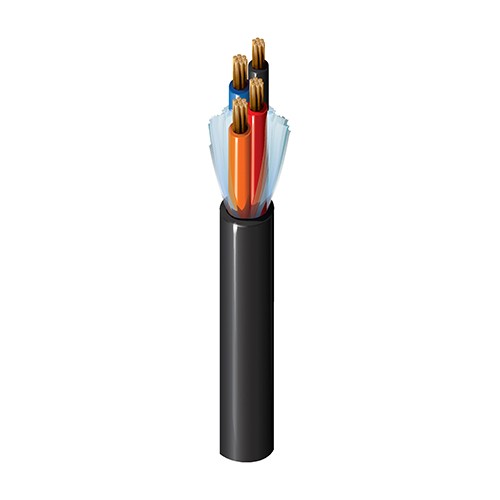

Belden 27327A | TC VN/PVC, 7 C #18 Stranded BC, PVC-NYL Ins E2, Black PVC Jacket
Regular price
$1.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 27327A | TC VN/PVC, 7 C #18 Stranded BC, PVC-NYL Ins E2, Bla...
Regular price
$1.74
Unit price
Description
Description
Belden 27327A | TC VN/PVC, 7 C #18 Stranded BC, PVC-NYL Ins E2, Black PVC Jacket
Specifications
Specifications
Belden - 27327A - Applications
- Power And Control Applications Up To 600V
- Class 1 Division 2 Hazardous Locations
- Recommended Cable Gland Belden Btc075A0551Ra
Belden - 27327A - Specifications
| No. of Elements | 7 |
|---|---|
| Size | 18 AWG |
| Stranding | 7x26 |
| UL Temperature | 90°C Dry, 75°C Wet |
| Operating Temperature | -30°C To +75°C Wet/90°C Dry |
| Stationary Min. | 1.44 in (36.6 mm) |
| Installation Min. | 1.8 in |
| Bulk Cable Weight | 82 lbs/1000ft |
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial |
| Flammability / Reaction to Fire | UL1685 UL Loading, IEEE 1202 FT4 |
| Color | Black |
