Brand: Belden
|
SKU:
8E-0201-B-01

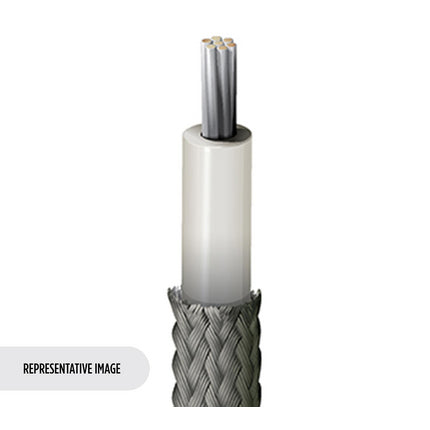

Belden 30802 009250 | Lead Wire, #2 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3125
Regular price
$22.42
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 30802 009250 | Lead Wire, #2 Str TC, Silicone Ins, Fiber Gla...
Regular price
$22.42
Unit price
Description
Description
Rubber Lead Wire, 2AWG (163x24) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3125 CSA SEW-2 600V 200C
Specifications
Specifications
Product Overview
| Suitable Applications | Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications |
|---|
Temperature Range
| UL Temp Rating | 200°C |
|---|---|
| Operating Temp Range | -70°C To +200°C |
Mechanical Characteristics
| Recommended Max Baking Cycles | 24 Hours @ 410°F (210°C) |
|---|---|
| Bulk Cable Weight | 298 lbs/1000ft |
| Min Bend Radius/Minor Axis | 1.99 in |
Standards
| UL AWM Style Compliance | UL AWM Style 3125 |
|---|
