Brand: Belden
|
SKU:
8M-1265B-B-01
Belden 30812 009500 | Lead Wire, #12 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3070
Regular price
$4.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 30812 009500 | Lead Wire, #12 Str TC, Silicone Ins, Fiber Gl...
Regular price
$4.54
Unit price
Description
Description

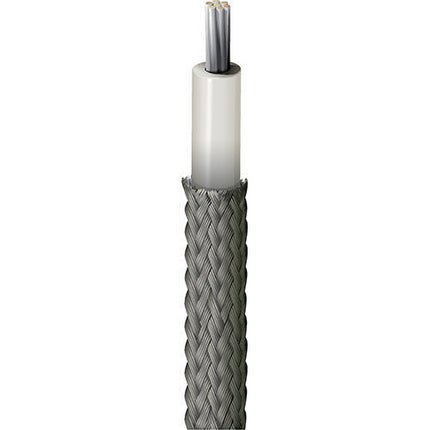

Rubber Lead Wire, 12AWG (65x30) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3070 CSA SEWF-2 600V 150C
Specifications
Specifications
Product Overview
| Suitable Applications | Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications |
|---|
Temperature Range
| UL Temp Rating | 150°C |
|---|---|
| Operating Temp Range | -70°C To +150°C |
Mechanical Characteristics
| Recommended Max Baking Cycles | 24 Hours @ 410°F (210°C) |
|---|---|
| Bulk Cable Weight | 32 lbs/1000ft |
| Min Bend Radius/Minor Axis | 0.74 in |
Standards
| UL AWM Style Compliance | UL AWM Style 3070 |
|---|---|
| CSA Rating | 600 V, 150°C |
| CSA Type | SEWF-2 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|
